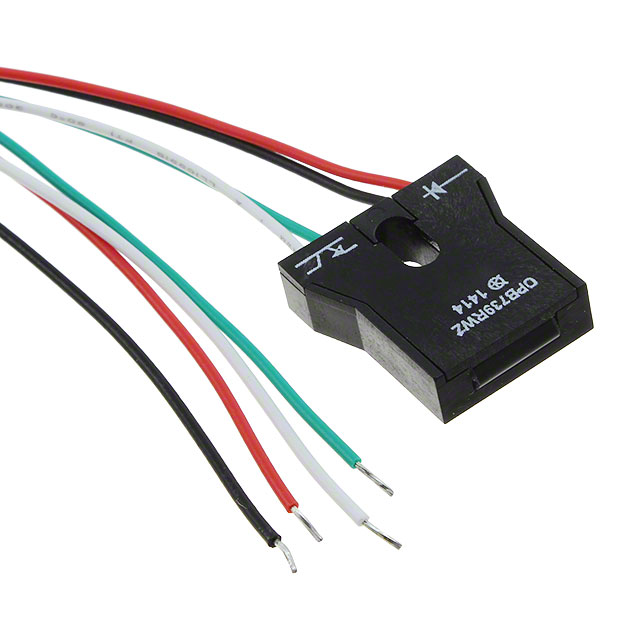

OPB739RWZ

Active

TT Electronics/Optek Technology

SENSOR RELFECTIVE

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR RELFECTIVE

Technical Specifications

Parameters and characteristics for this part

Specification	OPB739RWZ

Current - DC Forward (If) (Max) [Max]	40 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Wire Leads, Module
Response Time	0.3 ms
Sensing Distance	ADJ
Sensing Distance [Max]	0.045 "
Sensing Distance [Max]	1.14 mm
Sensing Distance [Min]	0.38 mm
Sensing Distance [Min]	0.015 "
Sensing Method	Reflective
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Current - DC Forward (If) (Max) [Max]	Sensing Distance [Min]	Sensing Distance	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Sensing Method	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Package / Case
TT Electronics/Optek Technology OPB739RWZ	40 mA	0.38 mm	ADJ	0.045 "	0.015 "	1.14 mm	85 °C	-40 °C	0.3 ms	Reflective	30 V	Chassis Mount	Module Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 0.015" ~ 0.045" (0.38mm ~ 1.14mm) ADJ Module, Wire Leads
