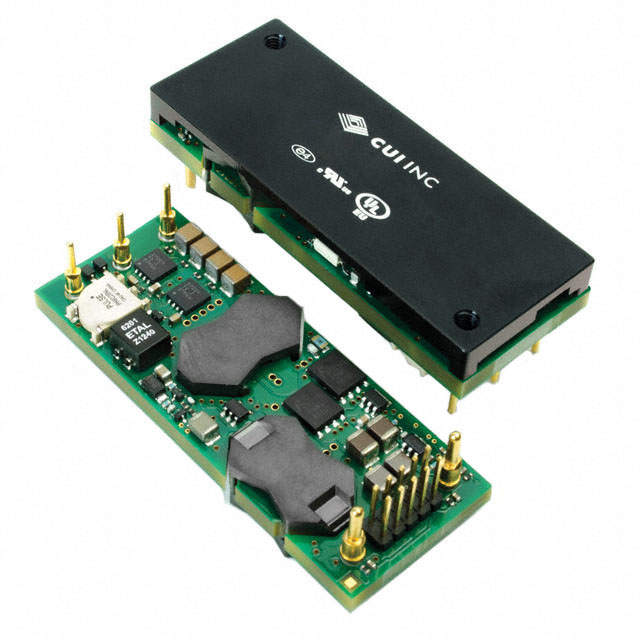

NEB-264DWA-AN

Obsolete

CUI Inc.

DC DC CONVERTER 12V 264W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 12V 264W

Technical Specifications

Parameters and characteristics for this part

Specification	NEB-264DWA-AN

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	22 A
Efficiency	95.2 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	15-DIP Module, 1/8 Brick
Power (Watts)	264 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	22.7 mm
Size / Dimension [y]	0.89 in
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Intermediate Bus Converter, Digital
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

Part	Features	Control Features	Mounting Type	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Applications	Type
CUI Inc. NEB-264NWA-ANH	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	Through Hole	95.2 %	1	36 V	22 A	264 W	75 V	125 °C	-40 °C	12 V	2250 VDC	0.52 "	13.2 mm	22.7 mm	2.3 in	58.4 mm	0.89 in	1/8 Brick 5-DIP Module	ITE (Commercial)	Intermediate Bus Converter
CUI Inc. NEB-264DWA-AN	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	Through Hole	95.2 %	1	36 V	22 A	264 W	75 V	125 °C	-40 °C	12 V	2250 VDC	0.4 "	10.2 mm	22.7 mm	2.3 in	58.4 mm	0.89 in	1/8 Brick 15-DIP Module	ITE (Commercial)	Intermediate Bus Converter Digital

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Intermediate Bus Converter, Digital DC DC Converter 1 Output 12V 22A 36V - 75V Input

Technical documentation and resources

No documents available
