ZA-20BFRS-BA0001

Active

Amphenol LTW

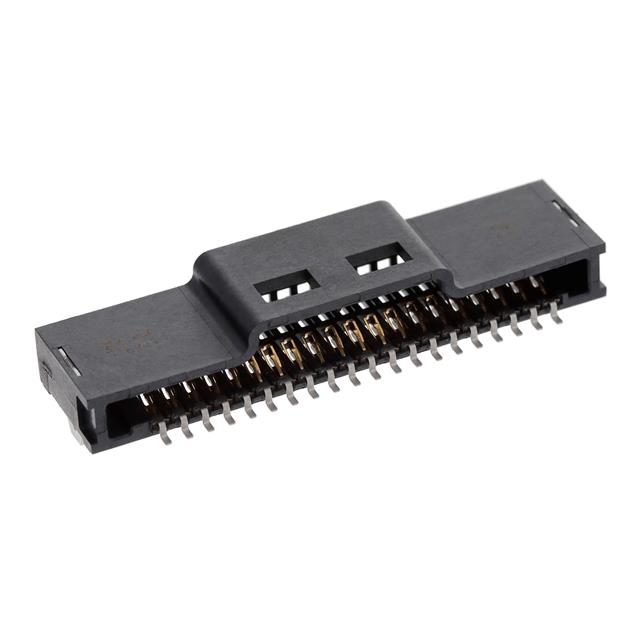

CONN FFC BOTTOM 20POS 1.8MM R/A

Search across all available documentation for this part.

Active

Amphenol LTW

CONN FFC BOTTOM 20POS 1.8MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	ZA-20BFRS-BA0001

Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Features	Solder Retention, Board Guide
Flat Flex Type	FPC, FFC
Height Above Board	7.9 mm
Height Above Board	0.311 in
Housing Color	Black
Housing Material	Thermoplastic
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Solder
Voltage Rating	120 VDC

Part	Termination	Number of Positions	Contact Finish	Housing Material	Flat Flex Type	Voltage Rating	Connector/Contact Type	Housing Color	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Contact Material	Features	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol LTW ZA-20BFRS-BA0001	Solder	20	Gold	Thermoplastic	FFC FPC	120 VDC	Contacts Bottom	Black	7.9 mm	0.311 in	Surface Mount Right Angle	0.071 in	1.8 mm	Copper Alloy	Board Guide Solder Retention	-40 °C	110 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position FFC, FPC Connector Contacts, Bottom 0.071" (1.80mm) Surface Mount, Right Angle
