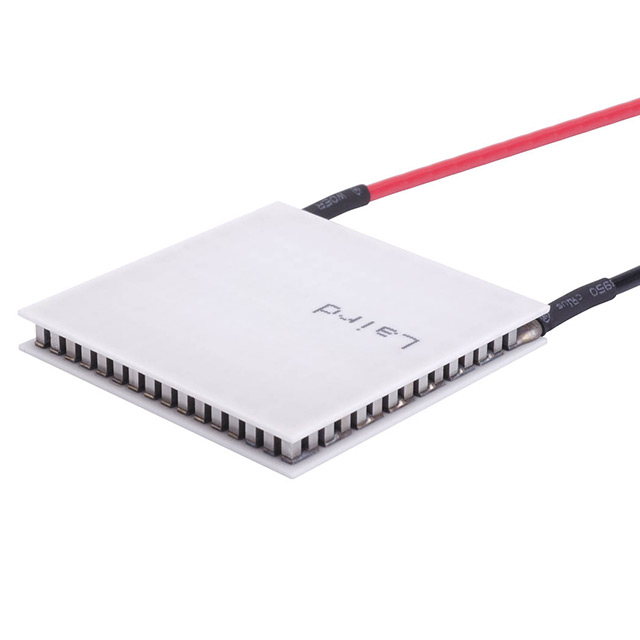

56760-505

Active

Laird Thermal Systems, Inc.

PELTIER MOD CP14,127,06,L1,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MOD CP14,127,06,L1,W4.5

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Operating Temperature	Resistance	Qmax @ Th	Current - Max [Max]	Delta Tmax @ Th	Features	Voltage - Max [Max]	Number of Stages
Laird Thermal Systems, Inc. 56760-512	39.9 mm	39.9 mm	3.81 mm	80 °C	2.25 Ohms	51.4 W	6 A	67 °C	Lead Wires Sealed - Epoxy	14.5 V
Laird Thermal Systems, Inc. 56760-500	39.88 mm	39.88 mm	3.81 mm	80 °C	2.25 Ohms	51.4 W	6 A	67 °C	Lead Wires Sealed - Silicone RTV	14.5 V	1
Laird Thermal Systems, Inc. 56760-505	39.88 mm	39.88 mm	3.81 mm	80 °C	2.25 Ohms	51.4 W	6 A	67 °C	Lead Wires Non-Sealed	14.5 V	1
