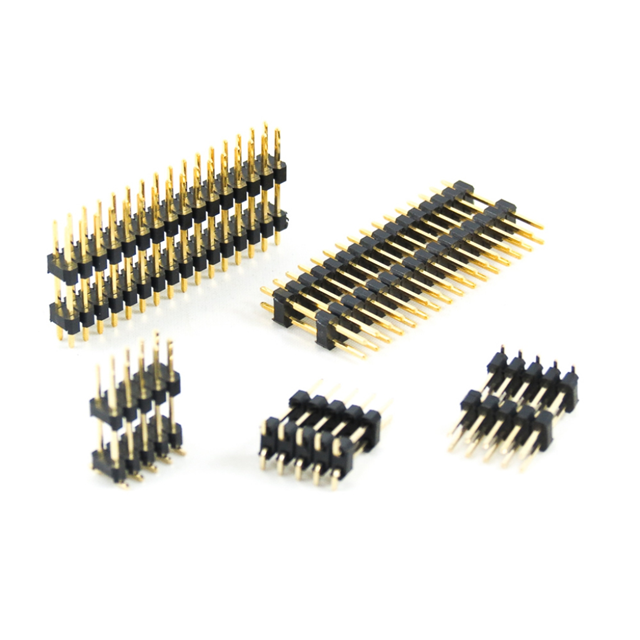

2012-2X07G00S-030-056J

Active

Oupiin

PIN HEADER, DOUBLE ROW, 14 PIN,

Deep-Dive with AI

Search across all available documentation for this part.

2012-2X07G00S-030-056J

Active

Oupiin

PIN HEADER, DOUBLE ROW, 14 PIN,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2012-2X07G00S-030-056J

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	Flash
Length - Post (Mating) [x]	5.6 mm
Length - Post (Mating) [x]	0.22 in
Length - Tail [x]	0.118 in
Length - Tail [x]	3 mm
Mounting Type	Through Hole
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

2012-2 Series

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Rows	Length - Tail [x]	Length - Tail [x]	Termination	Mounting Type	Color	Number of Positions	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Length - Tail [custom]	Length - Tail [custom]	Length - Tail	Length - Tail	Number of Positions	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [x]	Length - Stack Height [x]
Oupiin 2012-2X02G00S-030-056J	5.6 mm	0.22 in	Gold	Flash	2	0.118 in	3 mm	Solder	Through Hole	Black	4	0.1 in	2.54 mm	2.54 mm	0.1 in
Oupiin 2012-2X13G00S/030/060/T	6 mm	0.236 in	Gold	Flash	2	0.118 in	3 mm	Solder	Through Hole	Black	26	0.1 in	2.54 mm	2.54 mm	0.1 in
Oupiin 2012-2X06G00S-3.81-3.81-P	3.81 mm	0.15 in	Gold	Flash	2			Solder	Through Hole	Black	12	0.1 in	2.54 mm	2.54 mm	0.1 in	0.15 in	3.81 mm
Oupiin 2012-2X10G00S/021/062/O	6.2 mm	0.244 in	Gold	Flash	2	0.083 in		Solder	Through Hole	Black	20	0.1 in	2.54 mm	2.54 mm	0.1 in			2.1 mm
Oupiin 2012-2X10G00S-5.08-5.08-K	5.08 mm	0.2 in	Gold	Flash	2			Solder	Through Hole	Black	20	0.1 in	2.54 mm	2.54 mm	0.1 in			5.08 mm	0.2 in
Oupiin 2012-2X08G00S/062/038/T	3.8 mm	0.15 in	Gold	Flash	2	0.244 in	6.2 mm	Solder	Through Hole	Black		0.1 in	2.54 mm	2.54 mm	0.1 in					16
Oupiin 2012-2X07G00S/2.8/2.3/E	2.3 mm	0.091 in	Gold	Flash	2			Solder	Through Hole	Black	14	0.1 in	2.54 mm	2.54 mm	0.1 in			2.8 mm	0.11 in
Oupiin 2012-2X10G00S/031/066/P	6.6 mm	0.26 in	Gold	Flash	2	0.122 in	3.1 mm	Solder	Through Hole	Black	20	0.1 in	2.54 mm	2.54 mm	0.1 in
Oupiin 2012-2X07G00S-030-056J	5.6 mm	0.22 in	Gold	Flash	2	0.118 in	3 mm	Solder	Through Hole	Black	14	0.1 in	2.54 mm	2.54 mm	0.1 in
Oupiin 2012-2X16G00S-2.9-4.6-22.6B	4.6 mm	0.181 in	Gold	Flash	2	0.114 "		Solder	Through Hole	Black		0.1 in	2.54 mm	2.54 mm	0.1 in			2.9 mm			0.89 in	22.606 mm	0.594 in	15.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.08
		1000	$ 0.90
		2000	$ 0.83
		3000	$ 0.72
		4000	$ 0.43

Description

General part information

2012-2 Series

14 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Documents

Technical documentation and resources

No documents available
