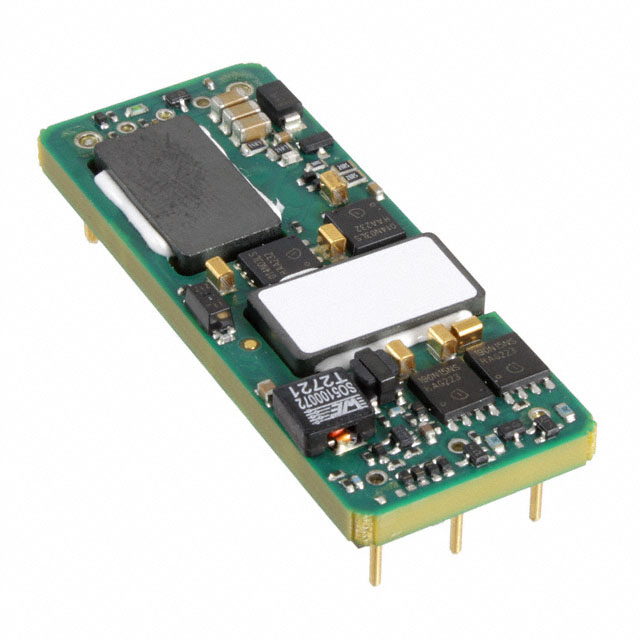

UWE-3.3/30-Q48N-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 99W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UWE-3.3/30-Q48N-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 99W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UWE-3.3/30-Q48N-C

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	30 A
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 1/8 Brick
Power (Watts)	99 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	8.6 mm
Size / Dimension [z]	0.34 in
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	3.3 V

UWE-3.3 Series

Part	Number of Outputs	Applications	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Type	Control Features	Package / Case	Voltage - Input (Min) [Min]	Voltage - Isolation	Mounting Type	Features	Efficiency	Power (Watts)
Murata Power Solutions Inc. UWE-3.3/20-Q48P-C	1	ITE (Commercial)	20 A	75 V	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	85 °C	-40 °C	3.3 V	Isolated Module	Active High Enable	1/8 Brick 8-DIP Module	18 V	2250 VDC	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO
Murata Power Solutions Inc. UWE-3.3/20-Q12PB-C	1	ITE (Commercial)	20 A	36 V	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	85 °C	-40 °C	3.3 V	Isolated Module	Active High Enable	1/8 Brick 8-DIP Module	9 V	1.5 kV	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	89 %
Murata Power Solutions Inc. UWE-3.3/20-Q48NB-C	1	ITE (Commercial)	20 A	75 V	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	85 °C	-40 °C	3.3 V	Isolated Module	Active Low Enable	1/8 Brick 8-DIP Module	18 V	2250 VDC	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO
Murata Power Solutions Inc. UWE-3.3/30-Q48NB-C	1	ITE (Commercial)	30 A	75 V	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	85 °C	-40 °C	3.3 V	Isolated Module	Active Low Enable	1/8 Brick 8-DIP Module	18 V	2250 VDC	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO		99 W
Murata Power Solutions Inc. UWE-3.3/30-Q48P-C	1	ITE (Commercial)	30 A	75 V	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	85 °C	-40 °C	3.3 V	Isolated Module	Active High Enable	1/8 Brick 8-DIP Module	18 V	2250 VDC	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO		99 W
Murata Power Solutions Inc. UWE-3.3/20-Q48PB-C	1	ITE (Commercial)	20 A	75 V	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	85 °C	-40 °C	3.3 V	Isolated Module	Active High Enable	1/8 Brick 8-DIP Module	18 V	2250 VDC	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO
Murata Power Solutions Inc. UWE-3.3/30-Q48N-C	1	ITE (Commercial)	30 A	75 V	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	85 °C	-40 °C	3.3 V	Isolated Module	Active Low Enable	1/8 Brick 8-DIP Module	18 V	2250 VDC	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO		99 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UWE-3.3 Series

Isolated Module DC DC Converter 1 Output 3.3V 30A 18V - 75V Input
