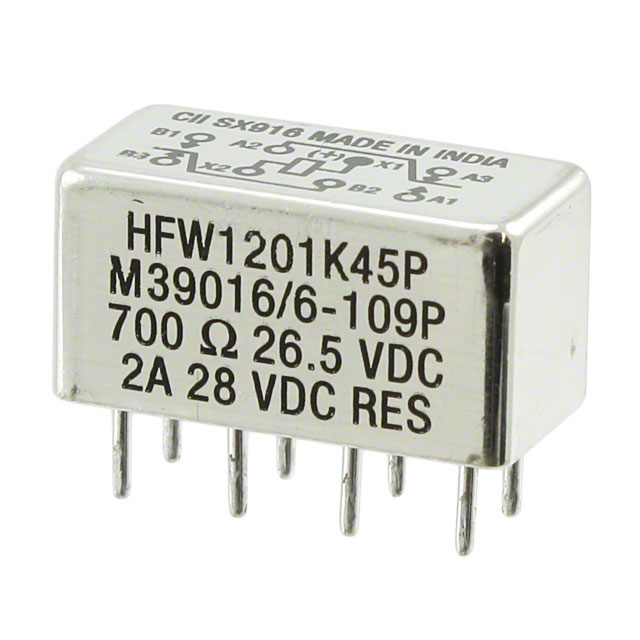

HFW1201K45P

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE DPDT 2A 26.5V

Deep-Dive with AI

Search across all available documentation for this part.

HFW1201K45P

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE DPDT 2A 26.5V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HFW1201K45P

Coil Current	37.9 mA
Coil Resistance	700 Ohms
Coil Type	Non Latching
Coil Voltage	26.5 VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2 A
Grade	Military
Mounting Type	Through Hole
Must Operate Voltage	13.5 VDC
Must Release Voltage	1.5 VDC
Operate Time	4 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Qualification	MIL-R-39016/6
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Hermetically
Switching Voltage	28 VDC
Termination Style	PC Pin

1617031 Series

Part	Coil Voltage	Must Release Voltage	Release Time	Contact Rating (Current)	Mounting Type	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Seal Rating	Relay Type	Coil Current	Termination Style	Must Operate Voltage	Coil Resistance	Operate Time	Contact Material	Switching Voltage	Load - Max Switching	Grade	Qualification
TE Connectivity Aerospace, Defense and Marine 1-1617031-2	26.5 VDC	1.5 VDC	4 ms	2 A	Through Hole	DPDT (2 Form C)	125 °C	-65 ░C	Non Latching	Sealed - Hermetically	General Purpose	37.9 mA	PC Pin	13.5 VDC	700 Ohms	4 ms
TE Connectivity Aerospace, Defense and Marine HFW1201K46P	26.5 VDC	1.5 VDC	4 ms	2 A	Through Hole	DPDT (2 Form C)	125 °C	-65 ░C	Non Latching	Sealed - Hermetically	General Purpose	37.9 mA	PC Pin	13.5 VDC	700 Ohms	4 ms	Gold (Au) Silver (Ag)
TE Connectivity Aerospace, Defense and Marine HFW1201L01	5 VDC	0.29 VDC	4 ms	2 A	Through Hole	DPDT (2 Form C)	125 °C	-65 ░C	Non Latching	Sealed - Hermetically	General Purpose	185.2 mA	PC Pin	2.7 VDC	27 Ohms	4 ms	Gold (Au) Silver (Ag)
TE Connectivity Aerospace, Defense and Marine 2-1617031-6	26.5 VDC	1.5 VDC	4 ms	2 A	Through Hole	DPDT (2 Form C)	125 °C	-65 ░C	Non Latching	Sealed - Hermetically	General Purpose	37.9 mA	PC Pin	13.5 VDC	700 Ohms	4 ms	Gold (Au) Silver (Ag)	28 VDC
TE Connectivity Aerospace, Defense and Marine 2-1617031-8	26.5 VDC	1.5 VDC	4 ms	2 A	Through Hole	DPDT (2 Form C)	125 °C	-65 ░C	Non Latching	Sealed - Hermetically	General Purpose	37.9 mA	PC Pin	13.5 VDC	700 Ohms	4 ms	Gold (Au) Silver (Ag)	28 VDC 115 VAC	56 W 230 VA
TE Connectivity Aerospace, Defense and Marine 4-1617031-4	24 VDC	1.4 VDC	4 ms	2 A	Through Hole	DPDT (2 Form C)	125 °C	-65 ░C	Non Latching	Sealed - Hermetically	General Purpose	12 mA	PC Pin	17.5 VDC	2.07 kOhms	4 ms	Gold (Au) Silver (Ag)	28 VDC 115 VAC	56 W 230 VA
TE Connectivity Aerospace, Defense and Marine 1617031-5	26.5 VDC	1.5 VDC	4 ms	2 A	Through Hole	DPDT (2 Form C)	125 °C	-65 ░C	Non Latching	Sealed - Hermetically	General Purpose	37.9 mA	PC Pin	13.5 VDC	700 Ohms	4 ms
TE Connectivity Aerospace, Defense and Marine HFW1201L01M	5 VDC	0.29 VDC	4 ms	2 A	Through Hole	DPDT (2 Form C)	125 °C	-65 ░C	Non Latching	Sealed - Hermetically	General Purpose	185.2 mA	PC Pin	2.7 VDC	27 Ohms	4 ms	Gold (Au) Silver (Ag)
TE Connectivity Aerospace, Defense and Marine HFW1201K00	26.5 VDC	1.5 VDC	4 ms	2 A	Through Hole	DPDT (2 Form C)	125 °C	-65 ░C	Non Latching	Sealed - Hermetically	General Purpose	37.9 mA	PC Pin	13.5 VDC	700 Ohms	4 ms		28 VDC
TE Connectivity Aerospace, Defense and Marine HFW1201K45P	26.5 VDC	1.5 VDC	4 ms	2 A	Through Hole	DPDT (2 Form C)	125 °C	-65 ░C	Non Latching	Sealed - Hermetically	General Purpose	37.9 mA	PC Pin	13.5 VDC	700 Ohms	4 ms		28 VDC		Military	MIL-R-39016/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	32	$ 83.30

Description

General part information

1617031 Series

General Purpose Relay DPDT (2 Form C) Through Hole

Documents

Technical documentation and resources

No documents available
