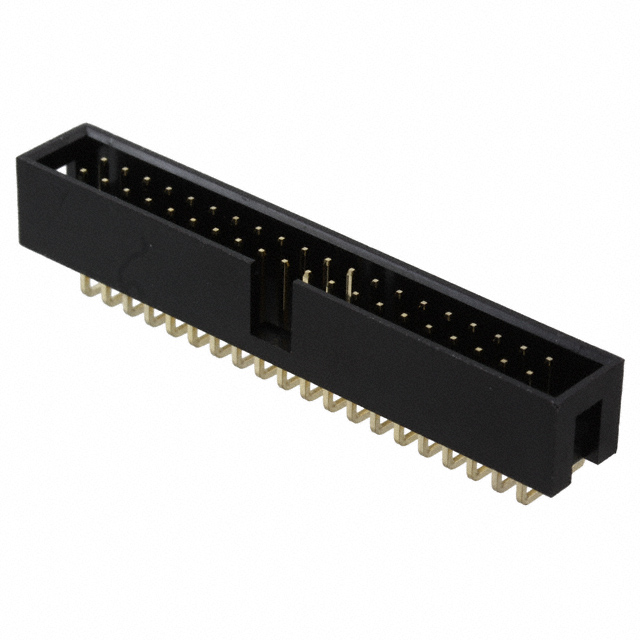

302-R401

Active

On Shore Technology Inc.

CONN HEADER R/A 40POS 2.54MM

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN HEADER R/A 40POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	302-R401

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.25 µin
Contact Finish Thickness - Post	0.032 µm
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.358 in
Insulation Height	9.1 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Finish - Mating	Number of Positions Loaded	Contact Shape	Mounting Type	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Style	Contact Type	Material Flammability Rating	Features	Insulation Height	Insulation Height	Number of Rows	Shrouding	Contact Finish - Post	Insulation Material	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Number of Positions	Contact Material	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating
On Shore Technology Inc. 302-R401	Gold	All	Square	Through Hole Right Angle	Header	1.25 µin	0.032 µm	Black	0.122 "	3.1 mm	2.54 mm	0.1 in	3 A	Board to Cable/Wire	Male Pin	UL94 V-0	Keying Slot	0.358 in	9.1 mm	2	Shrouded - 4 Wall	Gold	Polyester Glass Filled	0.1 in	2.54 mm	Solder	Push-Pull	40	Brass	Flash	-40 °C	105 ░C	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
