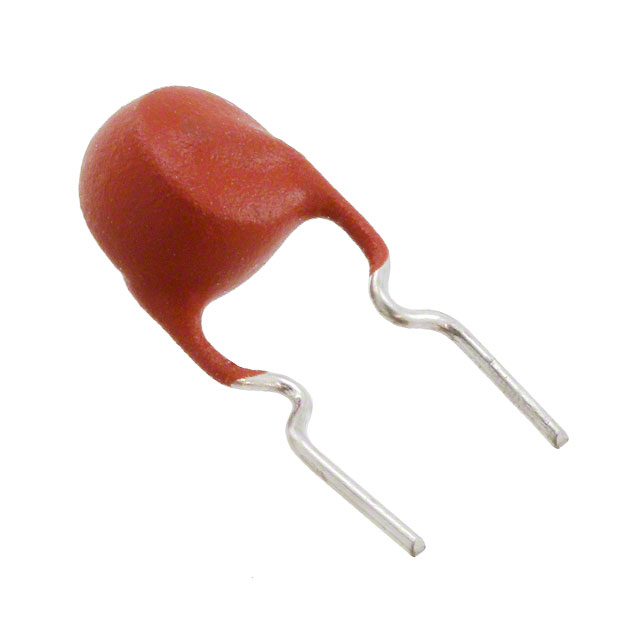

PTGL05AR121M9N51B0

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 265V 47MA RADIAL

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 265V 47MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Type	Mounting Type	Resistance - 25°C (Typ)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Current - Trip (It)	Lead Spacing	Lead Spacing	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Approval Agency
Murata Power Solutions Inc. PTGL05AR331M7A52B0	Ceramic	Through Hole	330 mOhms	Disc Radial
Murata Power Solutions Inc. PTGL05AR181M7P52B0	Ceramic	Through Hole	180 Ohms	Disc Radial	12 mm	0.472 "	5 mm	6 mm	0.197 in	0.236 in	64 mA	5 mm	0.197 in	300 mA	38 mA	125 V	-10 °C	60 °C
Murata Power Solutions Inc. PTGL05AR550H4P51B0	Ceramic	Through Hole	55 Ohms	Disc Radial			4.5 mm	5.5 mm	0.177 in	0.217 "	115 mA	5 mm	0.197 in	700 mA	62 mA	80 V	-10 °C	60 °C	0.453 "	11.5 mm
Murata Power Solutions Inc. PTGL05AR121M9N51B0	Ceramic	Through Hole	120 Ohms	Disc Radial	13 mm	0.512 "	6.5 mm	6.5 mm	0.256 in	0.256 in	75 mA	5 mm	0.197 in	300 mA	47 mA	265 V	-10 °C	60 °C			UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ceramic PTC Resettable Fuse 265V 47 mA Ih Through Hole Radial, Disc
