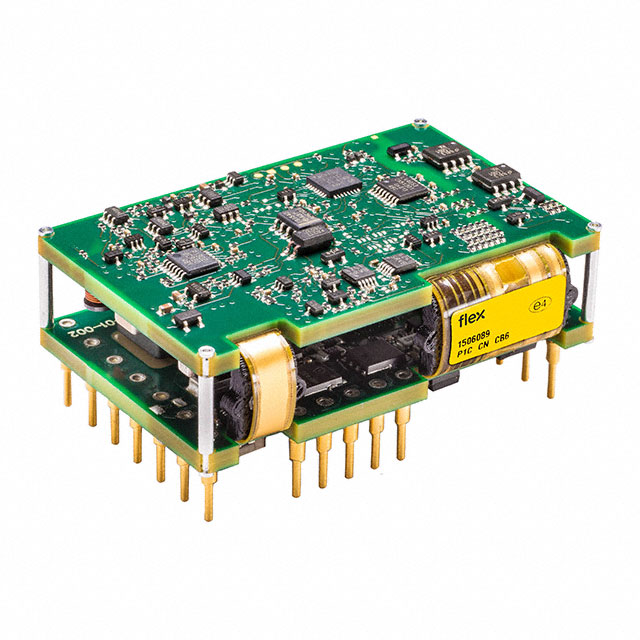

PIM4710PDA
ActiveFlex Power Modules
DC DC CONVERTER 3.6V 25W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PIM4710PDA
ActiveFlex Power Modules
DC DC CONVERTER 3.6V 25W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PIM4710PDA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA |
| Current - Output (Max) | 7 A |
| Efficiency | 98.8 % |
| Features | PMBus™ |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 20.8 mm |
| Size / Dimension [z] | 0.82 in |
| Standard Number | 62368-1 |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 147.81 | |
| 20 | $ 141.56 | |||
| 40 | $ 138.44 | |||
Description
General part information
PIM471 Series
Isolated Module DC DC Converter 1 Output 3.6V 7A 36V - 75V Input
