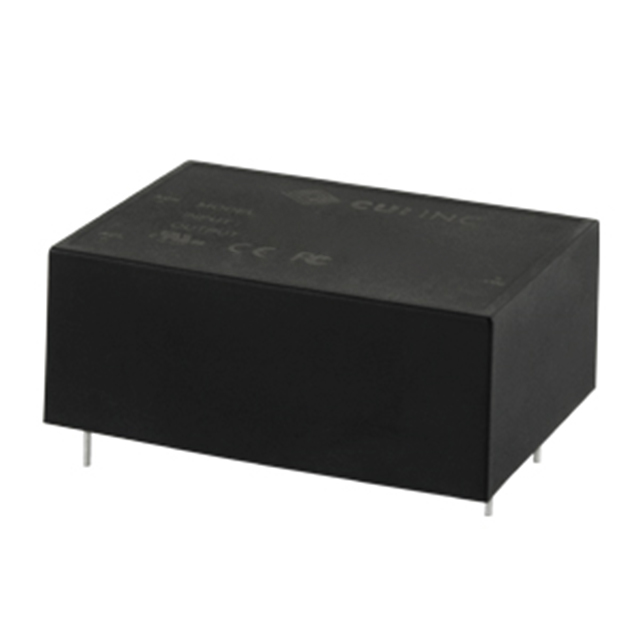

PSK-20B-S5

Active

CUI Inc.

AC/DC CONVERTER 5V 20W

Search across all available documentation for this part.

Active

CUI Inc.

AC/DC CONVERTER 5V 20W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Line Regulation	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Efficiency	Voltage - Output 1	Mounting Type	Standard Number	Approval Agency	Current - Output (Max) [Max]	Load Regulation	Features	Applications	Number of Outputs	Type	Line Regulation	Load Regulation	Voltage - Input [Min]	Voltage - Input [Max]
CUI Inc. PSK-20B-S24	20 W	0.91 in	1.77 "	2.44 in	62 mm	23.1 mm	45 mm	Ý0.5%	70 °C	-25 °C	4-DIP Module	86.06 %	24 V	Through Hole	60950-1 61000-3-2 61000-3-3 62368-1	CB Scheme EN FCC IEC UL	850 mA	Ý1%	Universal Input	ITE (Commercial)	1	Enclosed
CUI Inc. PSK-20B-S48	20 W	0.91 in	1.77 "	2.44 in	62 mm	23.1 mm	45 mm		70 °C	-25 °C	4-DIP Module	86 %	48 V	Through Hole	60950-1 61000-3-2 61000-3-3 62368-1	CB Scheme EN FCC IEC UL	420 mA		Universal Input	ITE (Commercial)	1	Enclosed	0.5 %	1 %
CUI Inc. PSK-20B-S5	20 W	0.91 in	1.77 "	2.44 in	62 mm	23.1 mm	45 mm		70 °C	-25 °C	4-DIP Module	82.85 %	5 V	Through Hole	60950-1 61000-3-2 61000-3-3 62368-1	CB Scheme EN FCC IEC UL	3.5 A		Universal Input	ITE (Commercial)	1	Enclosed	0.5 %	1 %	85 VAC 120 VDC	264 VAC 370 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	160	$ 18.00

General part information

Enclosed AC DC Converters 1 Output 5V 3.5A 85 ~ 264 VAC, 120 ~ 370 VDC Input
