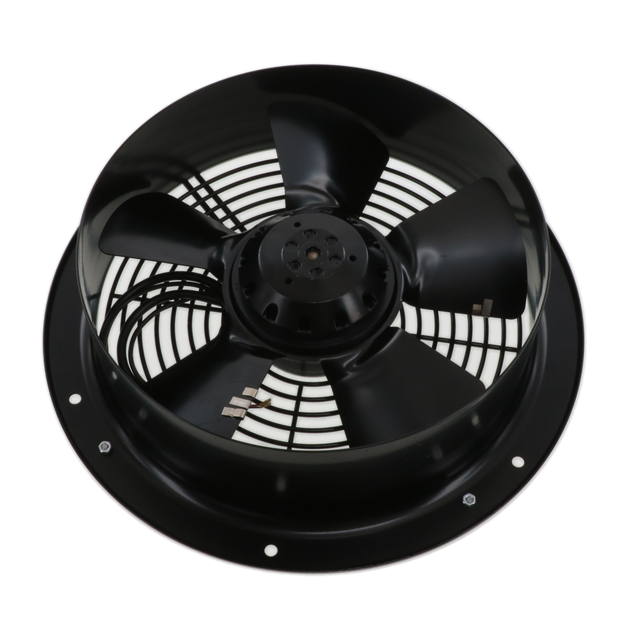

W4S250-CA20-56

Active

ebm-papst Inc.

FAN AXIAL

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	W4S250-CA20-56

Approval Agency	UL, CE
Bearing Type	Ball
Current Rating (Amps)	1.12 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Material - Frame	Steel, Plastic Coating
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	80 W
RPM	1550 RPM
Size / Dimension	Round
Size / Dimension [diameter]	320 mm
Termination	3 Wire Leads with Splice Terminals, 3 Wire Leads with Splice Terminals
Voltage - Rated	115 VAC
Width [y]	88.9 mm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Voltage - Rated	Approval Agency	Material - Frame	Ingress Protection	Power (Watts)	Static Pressure	Static Pressure	Material - Blade	Fan Type	Features	Width [y]	Size / Dimension [diameter]	Size / Dimension	RPM	Bearing Type	Current Rating (Amps)
ebm-papst Inc. W4S250-CA02-01	50 °C	-25 °C	-25 °C	50 °C	3 Wire Leads with Splice Terminals	230 VAC	CE	Plastic Coating Steel	IP44	75 W	100 Pa	0.401 in H2O	Steel	Tubeaxial	Thermal Overload Protector (TOP)	85 mm	320 mm	Round	1620 RPM	Ball	460 mA
ebm-papst Inc. W4S250-CA20-56	40 °C	-25 °C	-25 °C	40 °C	3 Wire Leads with Splice Terminals 3 Wire Leads with Splice Terminals	115 VAC	CE UL	Plastic Coating Steel	IP44	80 W			Steel	Tubeaxial	Thermal Overload Protector (TOP)	88.9 mm	320 mm	Round	1550 RPM	Ball	1.12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Round - 320mm Dia Ball 3 Wire Leads with Splice Terminals, 3 Wire Leads with Splice Terminals
