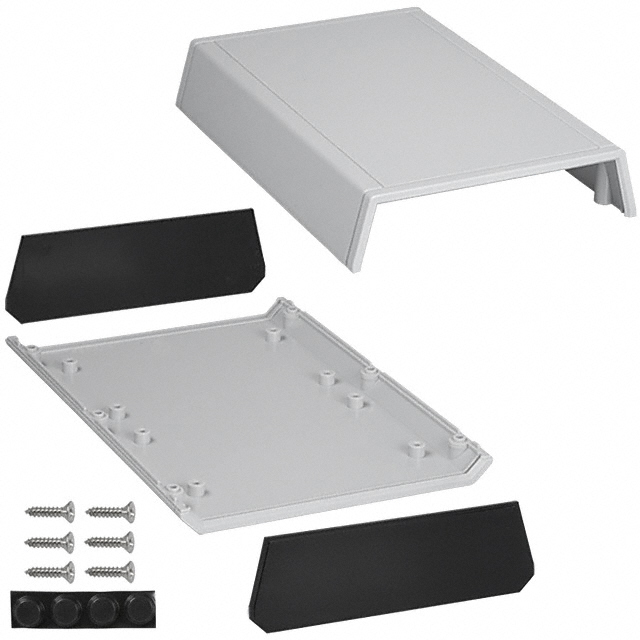

A42,GY

Active

Serpac

BOX ABS GRAY 7.12"L X 5"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 7.12"L X 5"W

Technical Specifications

Parameters and characteristics for this part

Specification	A42,GY

Area (L x W) [custom]	230 cm²
Area (L x W) [custom]	35.6 in²
Color	Gray
Container Type	Box
Design	Split Sides and End Panel(s)
Features	PCB Supports
Height [z]	1.62 in
Height [z]	41.15 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	7.12 "
Size / Dimension [x]	180.85 mm
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Thickness	0.12 in
Thickness	3.05 mm
Weight	0.48 lb
Weight	217.72 g

Part	Thickness	Thickness	Material	Ratings	Height [z]	Height [z]	Features	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Design	Material Flammability Rating	Color	Container Type	Weight	Weight
Serpac A42,AL	0.12 in	3.05 mm	Plastic ABS	IP40	1.62 in	41.15 mm	PCB Supports	230 cm²	35.6 in²	7.12 "	5 "	127 mm	180.85 mm	Split Sides and End Panel(s)	UL94 HB	Almond	Box	0.48 lb	217.72 g
Serpac A42,GY	0.12 in	3.05 mm	Plastic ABS	IP40	1.62 in	41.15 mm	PCB Supports	230 cm²	35.6 in²	7.12 "	5 "	127 mm	180.85 mm	Split Sides and End Panel(s)	UL94 HB	Gray	Box	0.48 lb	217.72 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Split Sides and End Panel(s) 7.120" L x 5.000" W (180.85mm x 127.00mm) X 1.620" (41.15mm)
