89053.35.01
ActivePrysmian Group

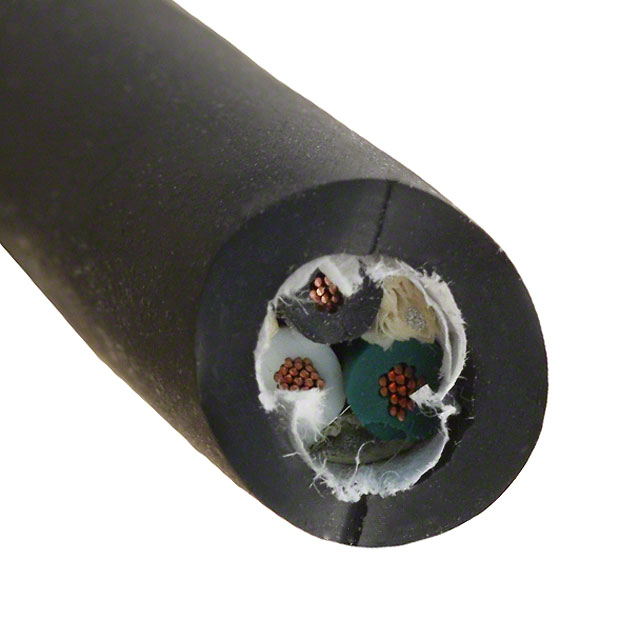

CABLE 3COND 18AWG BLACK 25'
Deep-Dive with AI
Search across all available documentation for this part.
89053.35.01
ActivePrysmian Group
CABLE 3COND 18AWG BLACK 25'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 89053.35.01 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Features | Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 9.45 mm |
| Jacket (Insulation) Diameter [diameter] | 0.372 in |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket (Insulation) Thickness | 0.762 mm |
| Jacket (Insulation) Thickness | 0.03 in |
| Jacket Color | Black |
| Length | 15.24 m, 3.05 m, 76.2 m |
| Length | 10 ft, 3000 " |
| Length [x] | 50 ft, 25 ft |
| Length [x] | 7.62 m |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -50 °C |
| Usage | Cord and Cordset |
| Voltage | 600 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.22 | |
| 1 | $ 17.47 | |||
| 1 | $ 85.08 | |||
| 5 | $ 37.00 | |||
| 5 | $ 14.29 | |||
| 5 | $ 69.61 | |||
| 10 | $ 28.78 | |||
| 10 | $ 54.14 | |||
| 10 | $ 11.12 | |||
| Spool | 250 | $ 0.87 | ||
| 500 | $ 0.83 | |||
| 1250 | $ 0.79 | |||
| 2500 | $ 0.74 | |||
| 6250 | $ 0.70 | |||
| 12500 | $ 0.69 | |||
Description
General part information
89053 Series
3 Conductor Multi-Conductor Cable Black 18 AWG 25.00' (7.62m)
Documents
Technical documentation and resources
No documents available
