PPPC182LFBN-RC
ActiveSullins Connector Solutions

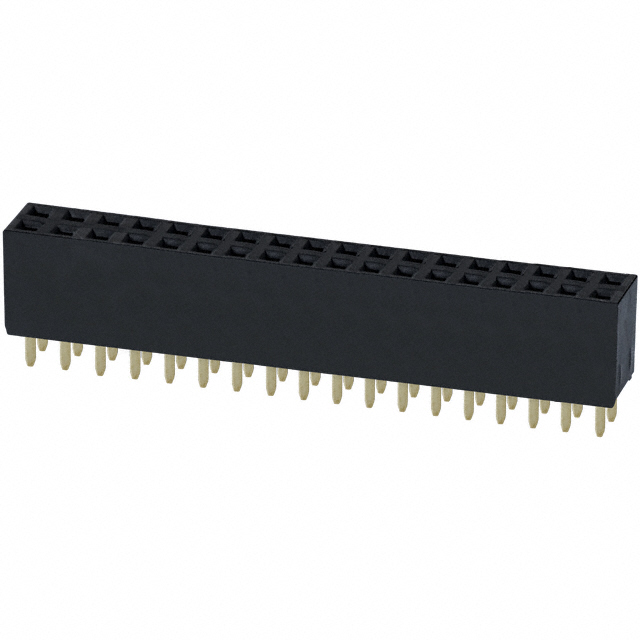

CONN HDR 36POS 0.1 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PPPC182LFBN-RC
ActiveSullins Connector Solutions
CONN HDR 36POS 0.1 GOLD PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PPPC182LFBN-RC |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Insulation Material | Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 250 VDC |
PPPC182 Series
| Part | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color | Contact Finish Thickness - Post | Material Flammability Rating | Contact Type | Contact Finish - Post | Connector Type | Contact Finish - Mating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Insulation Material | Number of Positions | Fastening Type | Voltage Rating | Number of Rows | Contact Finish Thickness - Mating | Mounting Type | Contact Material | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Shape | Insulation Height | Insulation Height | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 2.54 mm | 0.1 in | Black | Flash | UL94 V-0 | Female Socket | Gold | Header | Gold | Solder | -40 °C | 105 ░C | 3 A | Polyester | 36 | Push-Pull | 250 VDC | 2 | Flash | Through Hole Right Angle | Phosphor Bronze | 3.15 mm | 0.124 " | 0.1 in | 2.54 mm | All | Square | |||
Sullins Connector Solutions | 2.54 mm | 0.1 in | Black | Flash | UL94 V-0 | Female Socket | Gold | Header | Gold | Solder | -40 °C | 105 ░C | 3 A | Polyester | 36 | Push-Pull | 250 VDC | 2 | Flash | Through Hole | Phosphor Bronze | 3.2 mm | 0.1 in | 2.54 mm | All | Square | 0.335 " | 8.51 mm | 0.126 in | |
Sullins Connector Solutions | 2.54 mm | 0.1 in | Black | Flash | UL94 V-0 | Female Socket | Gold | Header | Gold | Solder | -40 °C | 125 °C | 3 A | Polyester | 36 | Push-Pull | 250 VDC | 2 | Flash | Surface Mount | Phosphor Bronze | 0.1 in | 2.54 mm | All | Square | 0.299 in | 7.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.55 | |
| 10 | $ 1.95 | |||
| 80 | $ 1.54 | |||
| 440 | $ 1.28 | |||
| 1000 | $ 1.18 | |||
| 5000 | $ 1.15 | |||
Description
General part information
PPPC182 Series
36 Position Header Connector 0.100" (2.54mm) Through Hole Gold
