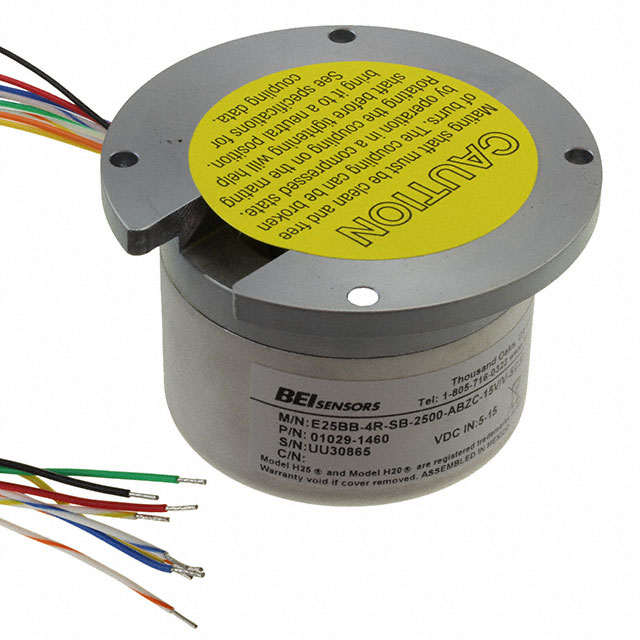

01029-1460

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 2500PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 2500PPR

Technical Specifications

Parameters and characteristics for this part

Specification	01029-1460

Actuator Type	Hole for Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Servo Mount
Orientation	User Selectable
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	2500
Rotational Life (Cycles Min) [Min]	1B
Termination Style	Cable
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	5 V

Part	Encoder Type	Actuator Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Orientation	Output Type	Rotational Life (Cycles Min) [Min]	Pulses per Revolution
Sensata-BEI Sensors E25BB-4R-SB-2500-ABZC-28V/V-SC18	Optical	Hole for Shaft	Chassis Mount	5 V	28 V	Cable	User Selectable	Quadrature with Index (Incremental)	1B	2500
Sensata-BEI Sensors 01029-1190	Optical	Hole for Shaft	Servo Mount	5 V	28 V	Cable	User Selectable	Quadrature with Index (Incremental)	1B	2500
Sensata-BEI Sensors 01033-012	Optical	Hole for Shaft	Servo Mount			Cable	User Selectable	Gray Code (Absolute)	1B	8
Sensata-BEI Sensors 01029-1460	Optical	Hole for Shaft	Servo Mount	5 V	15 V	Cable	User Selectable	Quadrature with Index (Incremental)	1B	2500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY ENCODER OPTICAL 2500PPR
