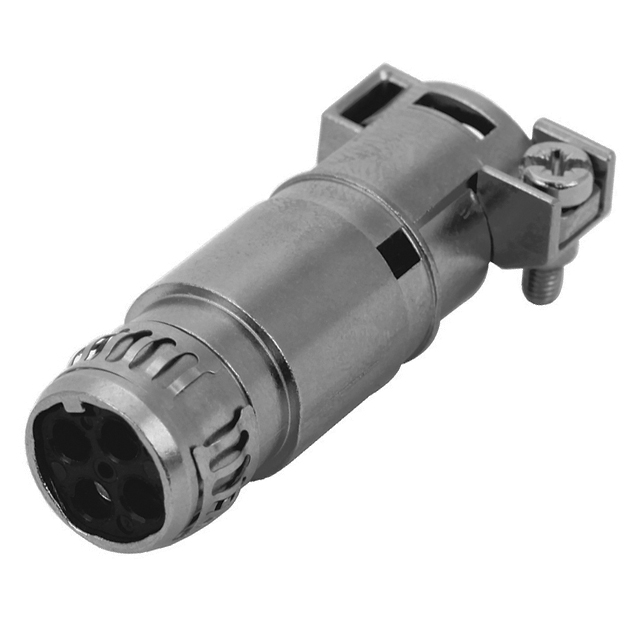

C146 10B004 901 15

Active

Amphenol Tuchel Industrial

MODULE FEMALE 4POS CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

MODULE FEMALE 4POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10B004 901 15

Connector Type	Module without Contacts
Contact Type	DD, M, C146 D, heavy\|mate®
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Copper Alloy
Material Flammability Rating	UL94 V-0
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	50 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Housing Material	Connector Type	Color	Number of Positions	Termination Style	Gender	Material Flammability Rating	Contact Type	Current Rating (Amps)
Amphenol Tuchel Industrial C146 10B004 500 15	125 °C	-40 °C	830 V	Glass Filled Nylon 6/6 Polyamide (PA66)	Module without Contacts	Black	4	Crimp	Female	UL94 V-0
Amphenol Tuchel Industrial C146 10B004 901 15	125 °C	-40 °C	50 V	Copper Alloy	Module without Contacts		4	Crimp	Female	UL94 V-0	C146 D DD heavy\|mate® M	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 19.67

General part information

Female Module without Contacts 4 Position Crimp
