19461100292

LTB

HARTING Technology Group

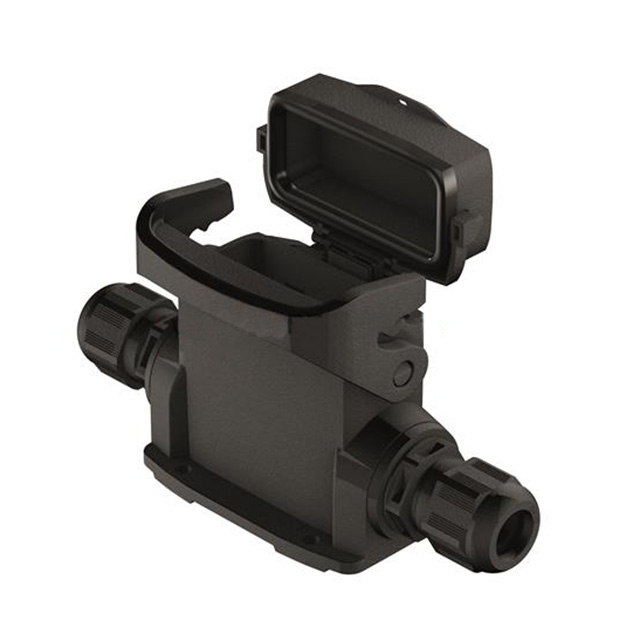

HAN-ECO 10A-HSM2-M20 W. COVER/CA

Search across all available documentation for this part.

LTB

HARTING Technology Group

HAN-ECO 10A-HSM2-M20 W. COVER/CA

Technical Specifications

Parameters and characteristics for this part

Specification	19461100292

Connector Type	Base - Box Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Style	Side Entry
Thread Size	M20

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Housing Material	Ingress Protection	Lock Location	Thread Size	Size	Housing Color	Features
HARTING Technology Group 19461100250	125 °C	-40 °C	Base - Box Mount	Side Entry	1.969 in	61.15 mm	50 mm	2.407 in	80.6 mm	3.173 in	Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	M20	10 A	Black
HARTING Technology Group 19461100446	125 °C	-40 °C	Hood	Top Entry							Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	M25	10 A	Black
HARTING Technology Group 19461100445	125 °C	-40 °C	Hood	Top Entry							Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	M20	10 A	Black
HARTING Technology Group 19461100292	125 °C	-40 °C	Base - Box Mount	Side Entry							Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	M20	10 A	Black
HARTING Technology Group 19461100290	125 °C	-40 °C	Base - Box Mount	Side Entry							Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	M20	10 A	Black	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 103.79

General part information

Base - Box Mount Connector Side Entry M20 10A IP65 - Dust Tight, Water Resistant
