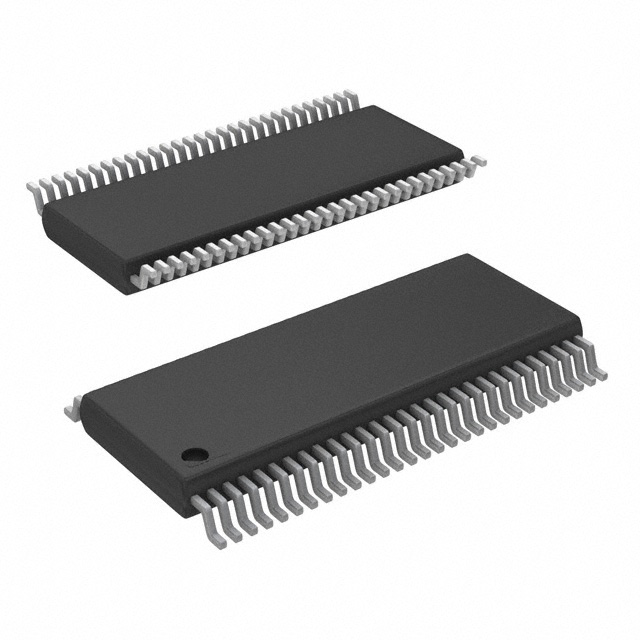

SN74ALVCH16952DGVR

Obsolete

Texas Instruments

IC TXRX NON-INVERT 3.6V 56TVSOP

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC TXRX NON-INVERT 3.6V 56TVSOP

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Bits per Element	Current - Output High, Low	Number of Elements	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Supplier Device Package	Mounting Type	Package / Case	Package / Case [y]
Texas Instruments SN74ALVCH16952DGG
Texas Instruments SN74ALVCH16952DL	0.295 in	56-BSSOP	7.5 mm	85 °C	-40 °C	8	24 mA	2	1.65 V	3.6 V	3-State	56-SSOP	Surface Mount
Texas Instruments SN74ALVCH16952DGVR		56-TFSOP		85 °C	-40 °C	8	24 mA	2	1.65 V	3.6 V	3-State	56-TVSOP	Surface Mount	0.173 in	4.4 mm
Texas Instruments SN74ALVCH16952DLR	0.295 in	56-BSSOP	7.5 mm	85 °C	-40 °C	8	24 mA	2	1.65 V	3.6 V	3-State	56-SSOP	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Transceiver, Non-Inverting 2 Element 8 Bit per Element 3-State Output 56-TVSOP
