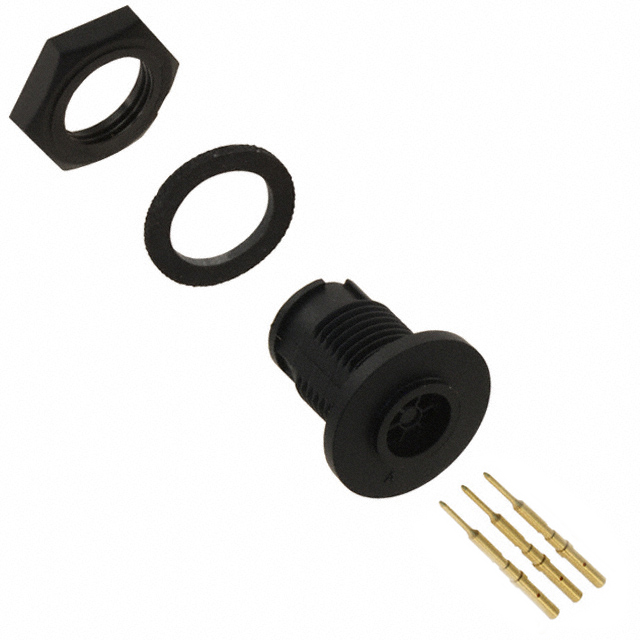

17280-3PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	17280-3PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

Part	Color	Shielding	Contact Material	Connector Type	Material Flammability Rating	Voltage Rating	Applications	Orientation	Ingress Protection	Termination	Fastening Type	Contact Finish - Mating	Mounting Feature	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material
Conxall/Switchcraft 17280-3PG-300	Black	Unshielded	Copper Alloy	Male Pins Receptacle	UL94 HB	600 VAC	Data Industrial Instrumentation Medical	Keyed	IP67 - Dust Tight Waterproof	Crimp	Bayonet Lock	Gold	Bulkhead - Front Side Nut	7.5 A	85 °C	-40 °C	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Crimp
