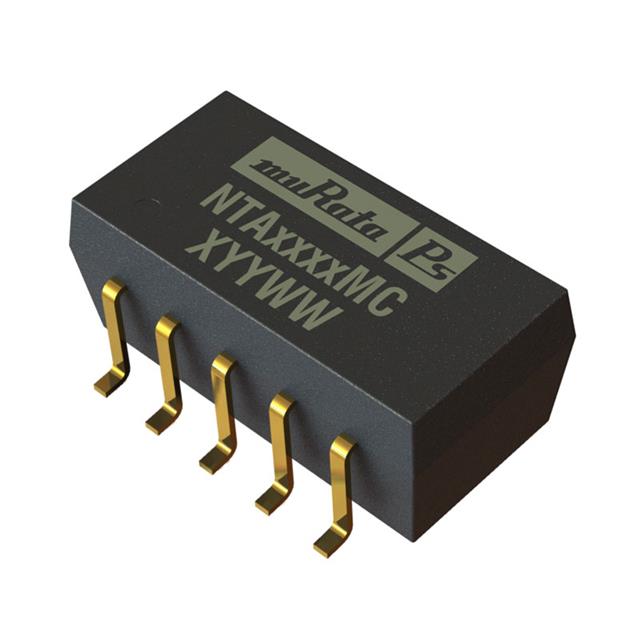

NTA0309MC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 1W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Mounting Type	Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Package / Case	Package / Case	Applications	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Current - Output (Max)
Murata Power Solutions Inc. NTA0315MC	1000 V	Surface Mount	Isolated Module	2.97 V	15 V	7.6 mm	15.2 mm	0.3 "	0.6 in	0.26 "	6.6 mm	10 Leads	18-SMD Module	ITE (Commercial)	3.63 V	-15 V	33 mA	85 °C	-40 °C	2	77 %
Murata Power Solutions Inc. NTA0305MC	1000 V	Surface Mount	Isolated Module	2.97 V	5 V	7.6 mm	15.2 mm	0.3 "	0.6 in	0.26 "	6.6 mm	10 Leads	18-SMD Module	ITE (Commercial)	3.63 V	-5 V	100 mA	85 °C	-40 °C	2	78 %	100 mA
Murata Power Solutions Inc. NTA0309MC	1000 V	Surface Mount	Isolated Module	2.97 V	9 V	7.6 mm	15.2 mm	0.3 "	0.6 in	0.26 "	6.6 mm	10 Leads	18-SMD Module	ITE (Commercial)	3.63 V	-9 V	55 mA	85 °C	-40 °C	2	75 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.95

General part information

Isolated Module DC DC Converter 2 Output 9V -9V 55mA, 55mA 2.97V - 3.63V Input

Technical documentation and resources
