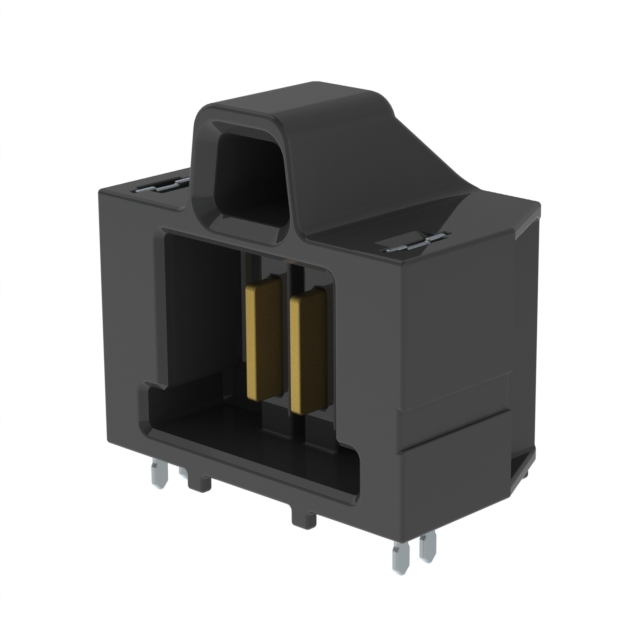

UMPT-02-01-L-RA-WT-P-TR

Active

Samtec Inc.

CONN HDR 2POS 2.00MM R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UMPT-02-01-L-RA-WT-P-TR

Active

Samtec Inc.

CONN HDR 2POS 2.00MM R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UMPT-02-01-L-RA-WT-P-TR

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	Solder Retention
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

UMPT-02 Series

Part	Number of Rows	Contact Finish	Connector Type	Pitch [x]	Pitch [x]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Number of Positions	Voltage Rating	Termination	Mounting Type	Features	Fastening Type
Samtec Inc. UMPT-02-07.5-L-V-S-TR	1	Gold	Header Male Blades	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	Black	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	2	650 V	Solder	Surface Mount
Samtec Inc. UMPT-02-02.5-L-V-S-W-P-TR	1	Gold	Header Male Blades	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	Black	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	2	650 V	Solder	Surface Mount	Solder Retention	Latch Lock
Samtec Inc. UMPT-02-01.5-L-V-S-TR	1	Gold	Header Male Blades	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	Black	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	2	650 V	Solder	Surface Mount
Samtec Inc. UMPT-02-02.5-L-V-S-W-M-TR	1	Gold	Header Male Blades	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	Black	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	2	650 V	Solder	Surface Mount	Solder Retention	Latch Lock
Samtec Inc. UMPT-02-01-S-RA-WT-TR	1	Gold	Header Male Blades	0.079 in	2 mm	Copper Alloy			Black	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	2		Solder	Surface Mount Right Angle	Solder Retention
Samtec Inc. UMPT-02-01-L-RA-WT-M-TR	1	Gold	Header Male Blades	0.079 in	2 mm	Copper Alloy			Black	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	2		Solder	Surface Mount Right Angle	Solder Retention	Latch Lock
Samtec Inc. UMPT-02-12.5-L-V-S-W-TR	1	Gold	Header Male Blades	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	Black	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	2	650 V	Solder	Surface Mount	Solder Retention
Samtec Inc. UMPT-02-12.5-L-V-S-TR	1	Gold	Header Male Blades	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	Black	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	2	650 V	Solder	Surface Mount
Samtec Inc. UMPT-02-06.5-L-V-S-W-TR	1	Gold	Header Male Blades	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	Black	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	2	650 V	Solder	Surface Mount	Solder Retention
Samtec Inc. UMPT-02-01-L-RA-WT-P-TR	1	Gold	Header Male Blades	0.079 in	2 mm	Copper Alloy			Black	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	2		Solder	Surface Mount Right Angle	Solder Retention	Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.52
		50	$ 2.87
	Tape & Reel (TR)	125	$ 2.44
		625	$ 2.31

Description

General part information

UMPT-02 Series

2 Position Header, Male Blades Connector Solder 0.079" (2.00mm) Surface Mount, Right Angle
