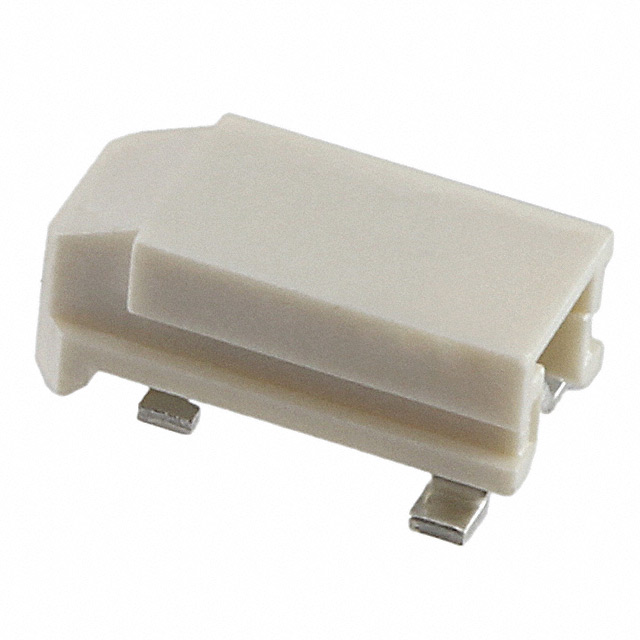

ES3S001JF3R3300
ObsoleteJAE Electronics
CONN SSL RECEPTACLE 1POS SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ES3S001JF3R3300
ObsoleteJAE Electronics
CONN SSL RECEPTACLE 1POS SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ES3S001JF3R3300 |
|---|---|
| Connector Type | Poke-In Wire, Receptacle |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mating Cycles | 5 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ES3S001J Series
SSL Connector 1 Position Receptacle, Poke-In Wire Board to Cable/Wire Solder
