Q2-F-1/4-01-QX30FT

Obsolete

Qualtek

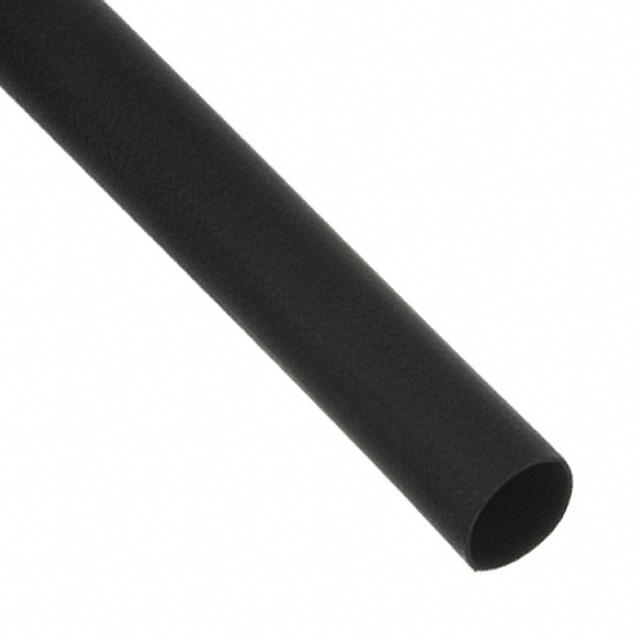

HEATSHRINK POLY Q2F 1/4" BLK 30'

Search across all available documentation for this part.

Obsolete

Qualtek

HEATSHRINK POLY Q2F 1/4" BLK 30'

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-1/4-01-QX30FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered	3.18 mm
Inner Diameter - Recovered [diameter]	0.125 in
Inner Diameter - Supplied [diameter]	0.25 in
Inner Diameter - Supplied [diameter]	6.35 mm
Length [x]	9.1 m
Length [x]	30 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.56 mm
Recovered Wall Thickness	0.022 "
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Shrinkage Ratio	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Type	Length [x]	Length [x]	Shelf Life	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Features
Qualtek Q2-F-1/4-01-MS100FT	0.125 in	3.18 mm	0.56 mm	0.022 "	0.25 in	6.35 mm	Black	2 to 1	70 °C	135 °C	-55 °C	Tubing Flexible	30.5 m	100 ft	144 Months	-50 °F -10 °C	40 °C	Polyolefin (PO)	Flame Retardant
Qualtek Q2-F-1/4-01-QX30FT	0.125 in	3.18 mm	0.56 mm	0.022 "	0.25 in	6.35 mm	Black	2 to 1	70 °C	135 °C	-55 °C	Tubing Flexible	9.1 m	30 ft	144 Months	-50 °F -10 °C	40 °C	Polyolefin (PO)	Flame Retardant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 0.250" (6.35mm) 2 to 1 Black 30.0' (9.1m)
