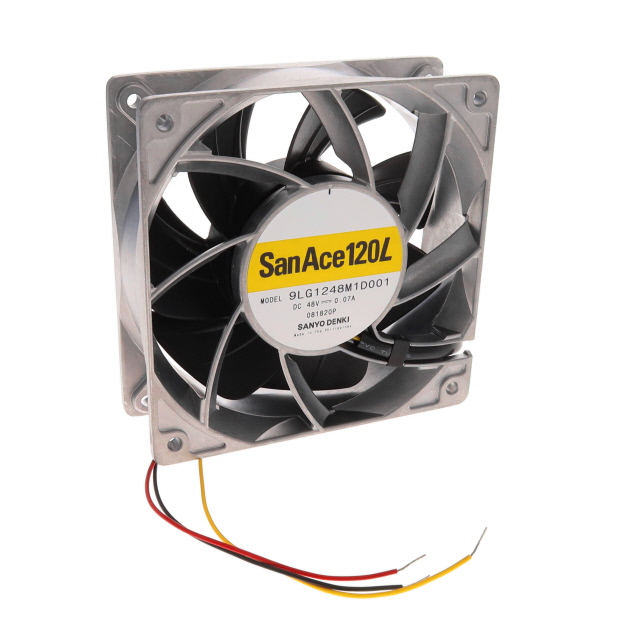

9LG1248M1D001

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated [custom]	Material - Blade	Size / Dimension [y]	Size / Dimension [x]	Features	Material - Frame	Bearing Type	Width [y]	Power (Watts)	Termination	Fan Type	Current Rating (Amps)	Noise	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Static Pressure	Static Pressure	Approval Agency
Sanyo Denki America Inc. 9LG1248M1D001	48 VDC	Plastic	120 mm	120 mm	Locked Rotor Sensor	Aluminum	Ball	38 mm	3.36 W	3 Wire Leads	Tubeaxial
Sanyo Denki America Inc. 9LG1248P1S001	48 VDC	Plastic	119 mm	119 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Aluminum	Ball	38 mm	26.4 W	4 Wire Leads	Tubeaxial	0.55 A	58 dB(A)	420.03 g	0.926 lb	60 V	36 VDC	211.8 CFM	5.93 m³/min	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	5600 RPM	269 Pa	1.08 in H2O	CSA TUV UL
Sanyo Denki America Inc. 9LG1248F1001	48 VDC	Plastic	120 mm	120 mm	Locked Rotor Protection Speed Sensor (Tach)	Aluminum	Ball	38 mm	5.28 W	3 Wire Leads	Tubeaxial
Sanyo Denki America Inc. 9LG1248P1G001	48 VDC	Plastic	119 mm	119 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Aluminum	Ball	38 mm	38.4 W	4 Wire Leads	Tubeaxial	800 mA	62 dB(A)	420.03 g	0.926 lb	60 V	36 VDC	247 CFM	6.92 m³/min	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	6550 RPM	368.7 Pa	1.48 in H2O	CSA TUV UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 47.06
