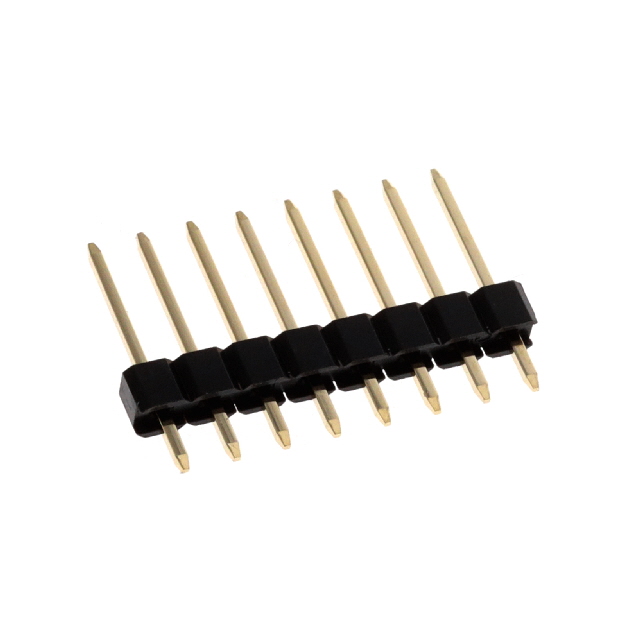

G800LE300018YEU

Active

Amphenol ICC (Commercial Products)

PIN HEADER 2.54MM PITCH STR DIP,

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

PIN HEADER 2.54MM PITCH STR DIP,

Technical Specifications

Parameters and characteristics for this part

Specification	G800LE300018YEU

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Contact Type	Male Pin
Current Rating (Amps)	3 A
Insulation Color	Black
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded

Part	Contact Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Type	Shrouding	Insulation Color	Contact Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Post	Contact Finish - Mating	Material Flammability Rating	Number of Positions Loaded	Mounting Type
Amphenol ICC (Commercial Products) G800LE300018YEU	Male Pin	Thermoplastic	-25 °C	105 ░C	2	Header	Unshrouded	Black	Copper Alloy	0.1 in	2.54 mm	3 A	Gold	Gold	UL94 V-0	All	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole position 0.100" (2.54mm)
