EPM7096LC68-7

Obsolete

Altera

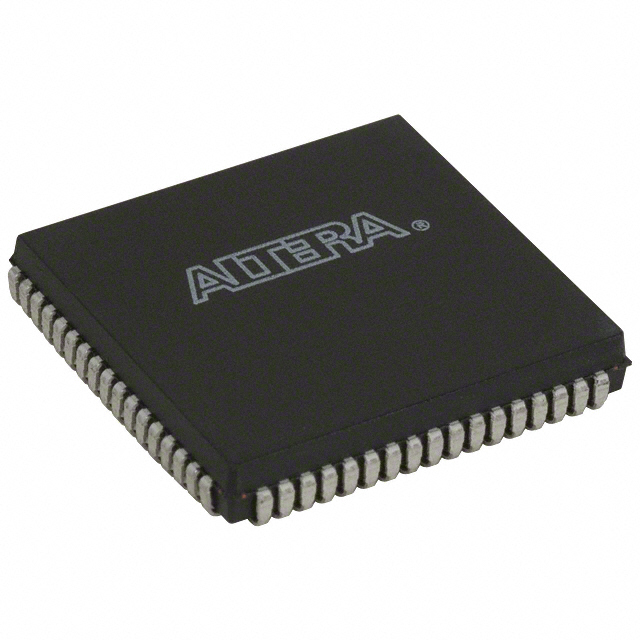

IC CPLD 96MC 7.5NS 68PLCC

Search across all available documentation for this part.

Obsolete

Altera

IC CPLD 96MC 7.5NS 68PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	EPM7096LC68-7

Delay Time tpd(1) Max [Max]	7.5 ns
Mounting Type	Surface Mount
Number of Gates	1800
Number of I/O	52
Number of Logic Elements/Blocks	6
Number of Macrocells	96
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	68-LCC (J-Lead)
Programmable Type	EE PLD
Supplier Device Package	68-PLCC (24x24)
Voltage Supply - Internal [Max]	5.25 V
Voltage Supply - Internal [Min]	4.75 V

Part	Delay Time tpd(1) Max [Max]	Mounting Type	Number of Gates	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Programmable Type	Number of Logic Elements/Blocks	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of Macrocells	Number of I/O
Altera EPM7096QC100-10	10 ns	Surface Mount	1800	100-PQFP (20x14)	100-BQFP	70 °C	0 °C	EE PLD	6	4.75 V	5.25 V	96	76
Altera EPM7096LC84-7	7.5 ns	Surface Mount	1800	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	70 °C	0 °C	EE PLD	6	4.75 V	5.25 V	96	68 I/O
Altera EPM7096LC84-2S002A	20 ns	Surface Mount	1800	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	70 °C	0 °C	EE PLD	6	4.75 V	5.25 V	96	68 I/O
Altera EPM7096LC84-12	12 ns	Surface Mount	1800	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	70 °C	0 °C	EE PLD	6	4.75 V	5.25 V	96	68 I/O
Altera EPM7096LI84-15	15 ns	Surface Mount	1800	84-PLCC (29.31x29.31)	84-LCC (J-Lead)	85 °C	-40 °C	EE PLD	6	4.5 V	5.5 V	96	68 I/O
Altera EPM7096LI68-15	15 ns	Surface Mount	1800	68-PLCC (24x24)	68-LCC (J-Lead)	85 °C	-40 °C	EE PLD	6	4.5 V	5.5 V	96	52
Altera EPM7096LC68-7	7.5 ns	Surface Mount	1800	68-PLCC (24x24)	68-LCC (J-Lead)	70 °C	0 °C	EE PLD	6	4.75 V	5.25 V	96	52
