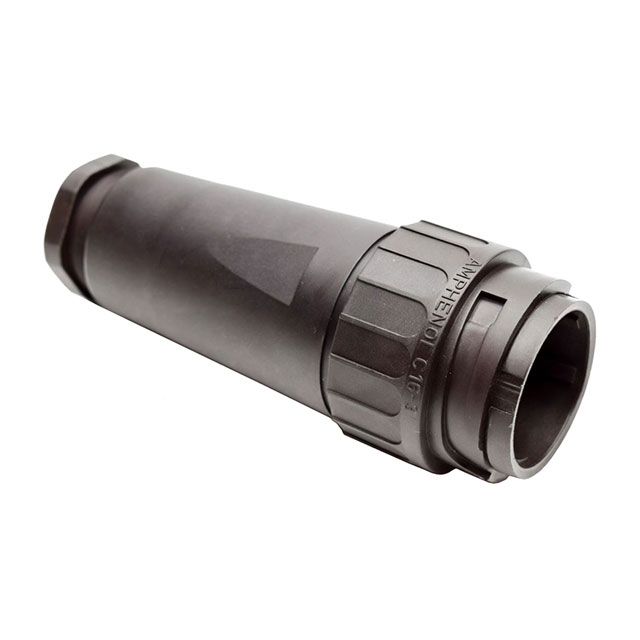

C01610I0190052

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 20POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 20POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C01610I0190052

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black
Includes	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	PE
Number of Positions [custom]	20, 19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2
Shielding	Unshielded
Type	For Male Pins

Part	Operating Temperature [Max]	Operating Temperature [Min]	Note	Shell Material	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Features	Type	Contact Shape	Shell Size - Insert	Ingress Protection	Mounting Type	Fastening Type	Contact Type	Orientation	Material Flammability Rating	Shielding	Housing Color	Includes	Contact Size
Amphenol Tuchel Industrial C01610I0190052	125 °C	-40 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	PE	19 20	Plug Housing	Backshell Cable Clamp Coupling Nut	For Male Pins	Circular	2	IP65 - Dust Tight Water Resistant	Free Hanging (In-Line)	Bayonet Lock	Crimp	N	UL94 V-0	Unshielded	Black	1 Backshell 1 Cable Nut 1 Connector 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 26.40

General part information

20 (19 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
