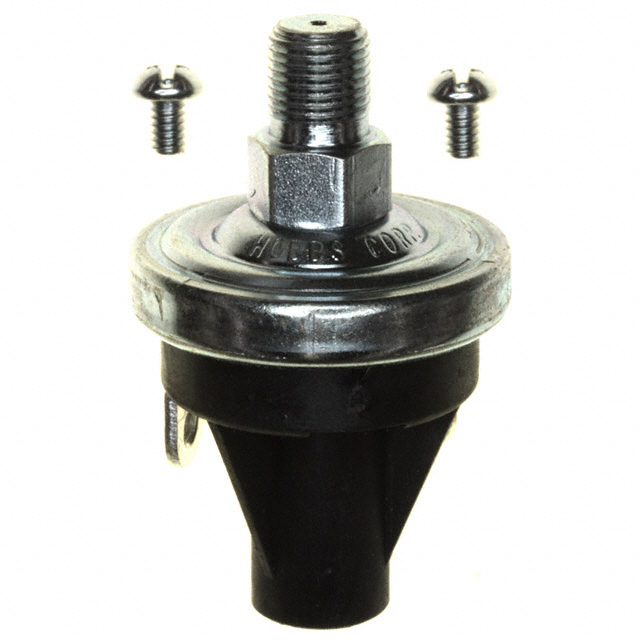

76064-00000600-01

Active

Honeywell Sensing and Productivity Solutions

SWITCH PRESSURE N.C. 60PSI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThermal Sensors Range Guide Datasheet +1

76064-00000600-01

Active

Honeywell Sensing and Productivity Solutions

SWITCH PRESSURE N.C. 60PSI

Deep-Dive with AI

DocumentsThermal Sensors Range Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	76064-00000600-01

Applications	Industrial Automation
Maximum Pressure [Max]	500 PSI
Maximum Pressure [Max]	3447.38 kPa
Operating Pressure	60 PSI
Operating Pressure	413.69 kPa
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-40 °C
Output Type	SPST-NC
Package / Case	Cylinder
Port Size	0.125 "
Port Size	3.18 mm
Port Size	Male
Port Style	Threaded
Pressure Type	Switch
Termination Style	Screw Terminal

76064 Series

Part	Output Type	Pressure Type	Port Size	Port Size	Port Size	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Operating Pressure	Operating Pressure
Honeywell Sensing and Productivity Solutions 76064-00000660-05	SPST-NC	Switch	0.125 "	3.18 mm	Male	Screw Terminal	500 PSI	3447.38 kPa	Threaded	351.63 kPa	90 PSI	620.53 kPa	51 PSI	Cylinder Threaded	-40 °C	121 °C
Honeywell Sensing and Productivity Solutions 76064-00000650-01	SPST-NC	Switch	0.125 "	3.18 mm	Male	Screw Terminal	500 PSI	3447.38 kPa	Threaded	351.63 kPa	90 PSI	620.53 kPa	51 PSI	Cylinder Threaded	-40 °C	121 °C
Honeywell Sensing and Productivity Solutions 76064-B00000600-01	SPST-NC	Switch	0.125 "	3.18 mm	Male	Screw Terminal	500 PSI	3447.38 kPa	Threaded					Cylinder Threaded	-40 °C	121 °C	Industrial Automation	60 PSI	413.69 kPa
Honeywell Sensing and Productivity Solutions 76064-00000660-01	SPST-NC	Switch	0.125 "	3.18 mm	Male	Screw Terminal	500 PSI	3447.38 kPa	Threaded	351.63 kPa	90 PSI	620.53 kPa	51 PSI	Cylinder Threaded	-40 °C	121 °C
Honeywell Sensing and Productivity Solutions 76064-B00000750-14	SPST-NC	Switch	0.125 "	3.18 mm	Male	Screw Terminal	500 PSI	3447.38 kPa	Threaded	351.63 kPa	90 PSI	620.53 kPa	51 PSI	Cylinder Threaded	-40 °C	121 °C
Honeywell Sensing and Productivity Solutions 76064-00000750-01	SPST-NC	Switch	0.125 "	3.18 mm	Male	Screw Terminal	500 PSI	3447.38 kPa	Threaded	351.63 kPa	90 PSI	620.53 kPa	51 PSI	Cylinder Threaded	-40 °C	121 °C
Honeywell Sensing and Productivity Solutions 76064-00000600-01	SPST-NC	Switch	0.125 "	3.18 mm	Male	Screw Terminal	500 PSI	3447.38 kPa	Threaded					Cylinder	-40 °C	121 °C	Industrial Automation	60 PSI	413.69 kPa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 94.13
		5	$ 79.40
		10	$ 73.79
		25	$ 66.99
		50	$ 65.87

Description

General part information

76064 Series

SWITCH PRESSURE N.C. 60PSI

Documents

Technical documentation and resources

Thermal Sensors Range Guide

Datasheet

Pressure Switches Datasheet

Datasheet
