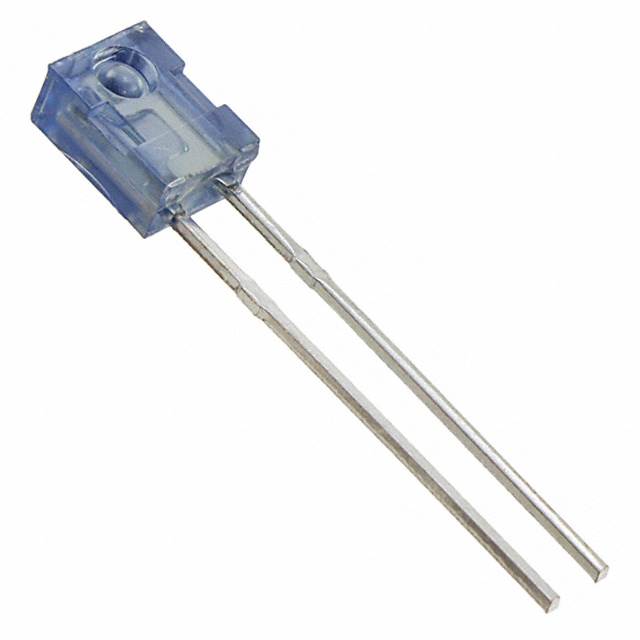

OP555A

Active

TT Electronics/Optek Technology

SENSOR PHOTO 935NM SIDE VIEW RAD

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR PHOTO 935NM SIDE VIEW RAD

Technical Specifications

Parameters and characteristics for this part

Specification	OP555A

Current - Collector (Ic) (Max) [Max]	4.7 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Side View
Package / Case	Radial
Power - Max [Max]	100 mW
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	935 nm

Part	Package / Case	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	Wavelength	Current - Dark (Id) (Max) [Max]	Mounting Type	Power - Max [Max]
TT Electronics/Optek Technology OP555A	Radial	Side View	30 V	100 °C	-40 °C	4.7 mA	935 nm	100 nA	Through Hole	100 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 935nm Side View Radial
