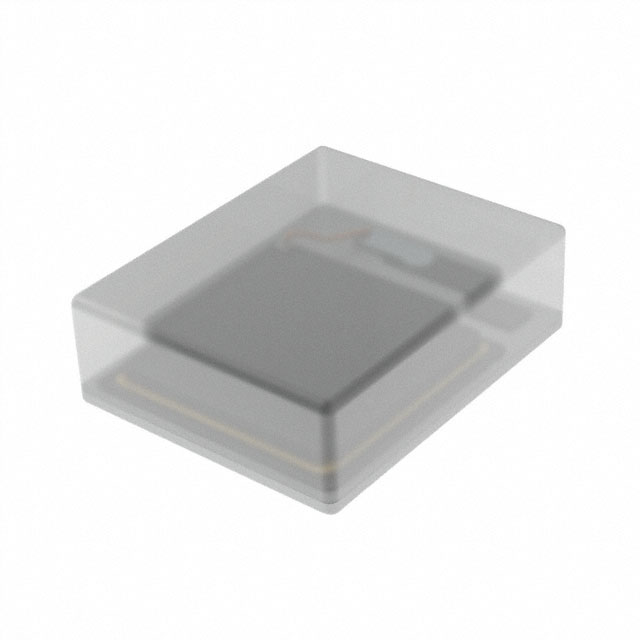

NJL6414R-TE1
ActiveNisshinbo Micro Devices Inc
SENSOR PHOTODIODE 900NM 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJL6414R-TE1
ActiveNisshinbo Micro Devices Inc
SENSOR PHOTODIODE 900NM 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJL6414R-TE1 |
|---|---|
| Active Area | 2.25 mm² |
| Current - Dark (Typ) | 500 pA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 2-SMD, No Lead |
| Response Time | 16 ns, 22 ns |
| Responsivity @ nm | 0.27 A/W, 0.47 A/W |
| Voltage - DC Reverse (Vr) (Max) [Max] | 35 V |
| Wavelength | 900 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.72 | |
| 6000 | $ 0.70 | |||
Description
General part information
NJL6414 Series
Photodiode 900nm 16ns, 22ns 2-SMD, No Lead
