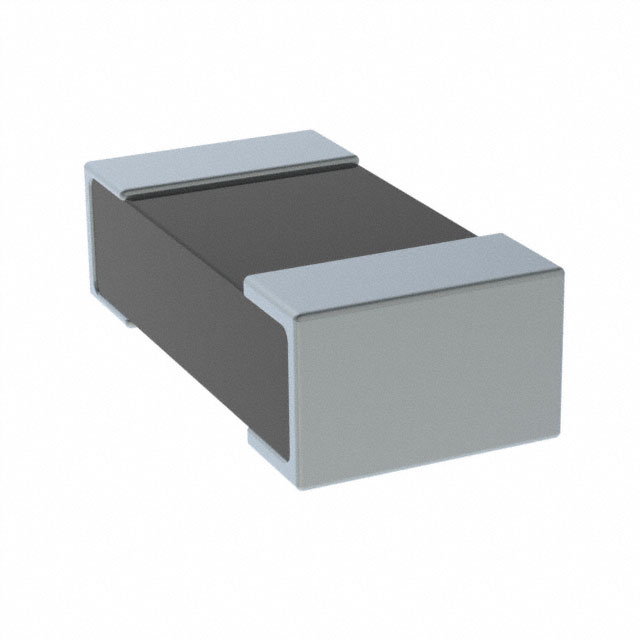

UR73D1JTTD56L0F
ActiveKOA Speer Electronics, Inc.
RES 56M OHM 1% 1/4W 0603
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UR73D1JTTD56L0F
ActiveKOA Speer Electronics, Inc.
RES 56M OHM 1% 1/4W 0603
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UR73D1JTTD56L0F |
|---|---|
| Composition | Thick Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.45 mm |
| Height - Seated (Max) [Max] [z] | 0.018 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 56 mOhms |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.75 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.41 | ||
| 10 | $ 0.29 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.21 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.13 | |||
| Tape & Reel (TR) | 5000 | $ 0.13 | ||
Description
General part information
UR73D1J Series
56 mOhms ±1% 0.25W, 1/4W Chip Resistor 0603 (1608 Metric) Current Sense Thick Film
