430848-504

Active

Laird Thermal Systems, Inc.

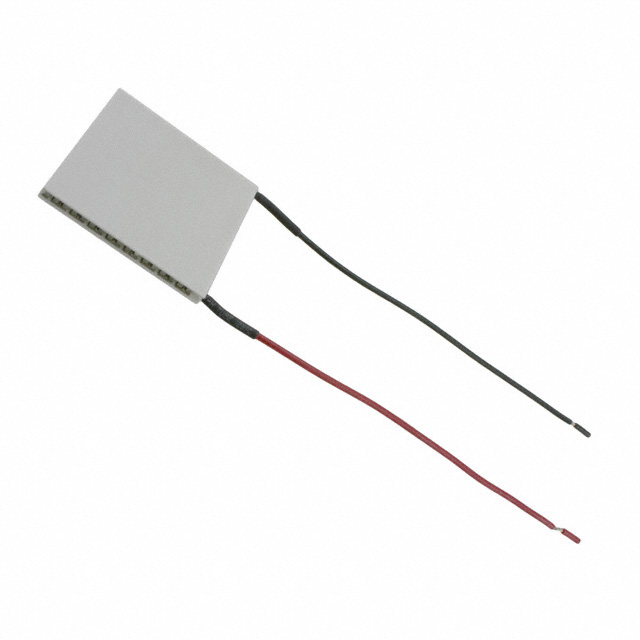

PELTIER MOD CP12,161,06,L1,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MOD CP12,161,06,L1,W4.5

Technical Specifications

Parameters and characteristics for this part

Part	Number of Stages	Qmax @ Th	Height [z]	Current - Max [Max]	Features	Voltage - Max [Max]	Resistance	Size / Dimension [y]	Size / Dimension [x]	Delta Tmax @ Th	Operating Temperature
Laird Thermal Systems, Inc. 430848-513	1	79.2 W	3.5 mm	7.3 A	Lead Wires Sealed - Epoxy	18.4 V	2.33 Ohms	40 mm	40 mm	67 °C	80 °C
Laird Thermal Systems, Inc. 430848-502	1	79.2 W	3.2 mm	7.3 A	Lead Wires Non-Sealed	18.4 V	2.33 Ohms	39.88 mm	39.88 mm	67 °C	80 °C
Laird Thermal Systems, Inc. 430848-504	1	52.2 W	3.61 mm	4.8 A	Lead Wires Non-Sealed	18.3 V	3.54 Ohms	39.88 mm	39.88 mm	67 °C	80 °C
Laird Thermal Systems, Inc. 430848-509	1	79.2 W	3.2 mm	7.3 A	Lead Wires Sealed - Silicone RTV	18.4 V	2.33 Ohms	39.88 mm	39.88 mm	67 °C	80 °C
