38.51.7.012.0050

Active

Finder Relays, Inc.

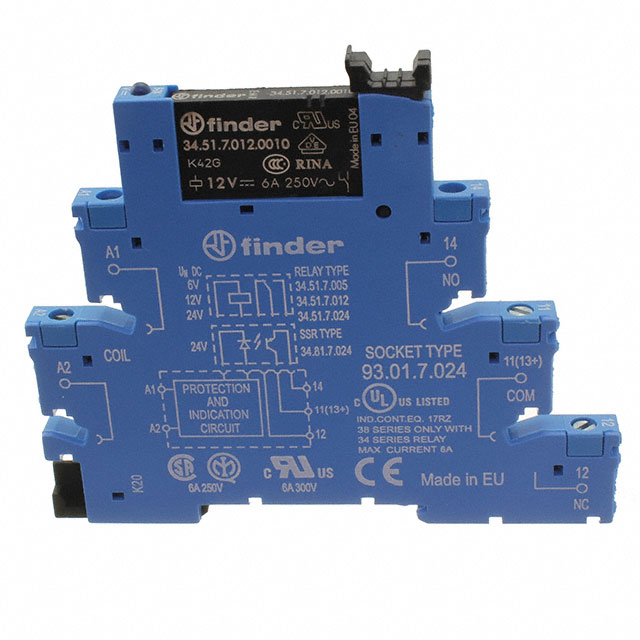

RELAY GEN PURPOSE SPDT 6A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

38.51.7.012.0050

Active

Finder Relays, Inc.

RELAY GEN PURPOSE SPDT 6A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	38.51.7.012.0050

Approval Agency	UKCA, cURus, RINA, CSA, CE, EAC
Coil Current	15.2 mA
Coil Resistance	789.5 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Socket Included
Load - Max Switching [Max]	2400 VA
Mounting Type	DIN Rail
Must Operate Voltage	9.6 VDC
Must Release Voltage	1.2 VDC
Operate Time	5 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	6 ms
Switching Voltage [Max]	400 VAC
Termination Style	Screw Terminal

38.51.7 Series

Part	Coil Type	Coil Current	Mounting Type	Operate Time	Termination Style	Contact Form	Must Operate Voltage	Relay Type	Contact Material	Switching Voltage [Max]	Must Release Voltage	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Approval Agency	Release Time	Load - Max Switching [Max]	Coil Voltage	Coil Resistance
Finder Relays, Inc. 38.51.7.060.0050	Non Latching	7 mA	DIN Rail	5 ms	Screw Terminal	SPDT (1 Form C)	48 VDC	General Purpose	Silver Nickel (AgNi)	400 VAC	6 VDC	Socket Included	-40 °C	70 °C	6 A	CE CSA cURus EAC RINA UKCA	6 ms	2400 VA	60 VDC	8.6 kOhms
Finder Relays, Inc. 38.51.7.024.0050	Non Latching	10.4 mA	DIN Rail	5 ms	Screw Terminal	SPDT (1 Form C)	19.2 VDC	General Purpose	Silver Nickel (AgNi)	400 VAC	2.4 VDC	Socket Included	-40 °C	70 °C	6 A	CE CSA cURus EAC RINA UKCA	6 ms	2400 VA	24 VDC	2.31 kOhms
Finder Relays, Inc. 38.51.7.012.5050	Non Latching	15.2 mA	DIN Rail	5 ms	Screw Terminal	SPDT (1 Form C)	9.6 VDC	General Purpose	Gold (Au) Silver Nickel (AgNi)	400 VAC	1.2 VDC	Socket Included	-40 °C	70 °C	6 A	CE CSA cURus EAC RINA UKCA	6 ms	2400 VA	12 VDC	789.5 Ohms
Finder Relays, Inc. 38.51.7.006.0050	Non Latching	35 mA	DIN Rail	5 ms	Screw Terminal	SPDT (1 Form C)	4.8 VDC	General Purpose	Silver Nickel (AgNi)	400 VAC	0.6 VDC	Socket Included	-40 °C	70 °C	6 A	CE CSA cURus EAC RINA UKCA	6 ms	2400 VA		171.4 Ohms
Finder Relays, Inc. 38.51.7.012.0050	Non Latching	15.2 mA	DIN Rail	5 ms	Screw Terminal	SPDT (1 Form C)	9.6 VDC	General Purpose	Silver Nickel (AgNi)	400 VAC	1.2 VDC	Socket Included	-40 °C	70 °C	6 A	CE CSA cURus EAC RINA UKCA	6 ms	2400 VA	12 VDC	789.5 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.25
		10	$ 15.33
		25	$ 14.57
		50	$ 13.80
		100	$ 13.03
		250	$ 11.88
		500	$ 11.12

Description

General part information

38.51.7 Series

General Purpose Relay SPDT (1 Form C) 12VDC Coil DIN Rail
