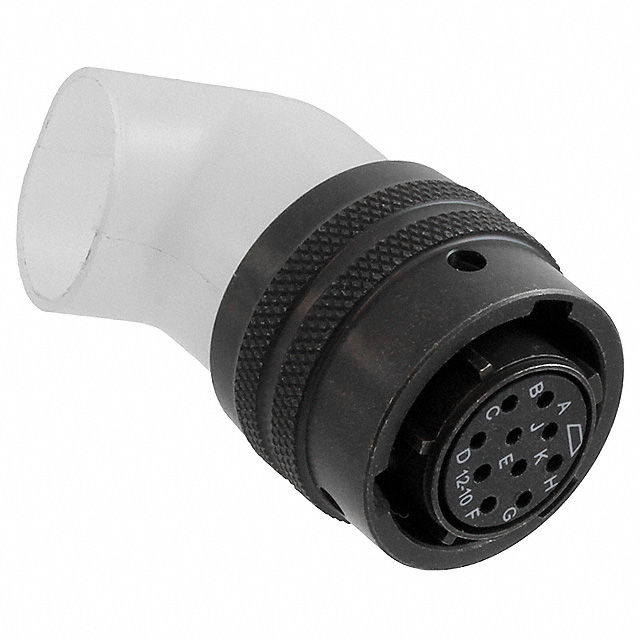

PT08P-12-10S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 10P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT08P-12-10S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 10P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PT08P-12-10S |
|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Potted |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.54 | |
| 10 | $ 39.96 | |||
| 100 | $ 35.09 | |||
Description
General part information
PT08P Series
10 Position Circular Connector Plug, Female Sockets Solder Cup
