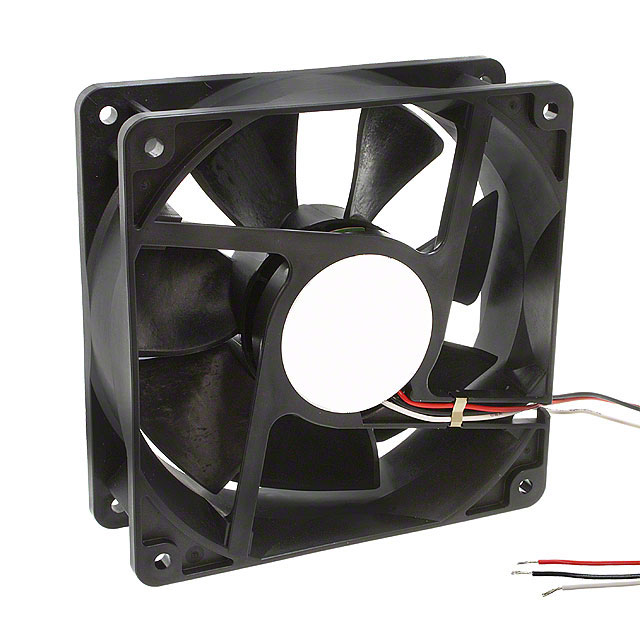

4715KL-04W-B59-E00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38.4MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38.4MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Range [Min]	Voltage Range [Max]	RPM	Fan Type	Noise	Lifetime @ Temp.	Power (Watts)	Voltage - Rated	Current Rating (Amps)	Material - Frame	Termination	Static Pressure	Static Pressure	Air Flow	Air Flow	Material - Blade	Approval Agency	Width [y]	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Operating Temperature [Max]
NMB TECHNOLOGIES 11938KA-24L-NT-00	10 VDC	27.6 VDC	2950 RPM	Tubeaxial	42.5 dB	100000 Hrs	7.44 W	24 VDC	0.31 A	Plastic	3 Wire Leads	67.3 Pa	0.27 in H2O	3.02 m³/min	108 CFM	Plastic	CE CSA UL VDE	38.4 mm	Ball	119 mm	119 mm	Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	259.91 g	0.573 lb
NMB TECHNOLOGIES 11938KA-24M-NT-00	10 VDC	27.6 VDC	3200 RPM	Tubeaxial	46.5 dB	100000 Hrs	8.4 W	24 VDC	0.35 A	Plastic	3 Wire Leads	82.2 Pa	0.33 in H2O	3.3 m³/min	118 CFM	Plastic	CE CSA UL VDE	38.4 mm	Ball	119 mm	119 mm	Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	259.91 g	0.573 lb
NMB TECHNOLOGIES 4715KL-04W-B59-E00	9.5 VDC	12.6 VDC	3600 RPM	Tubeaxial	50 dB(A)	50000 Hrs	12 W	12 VDC		Plastic	3 Wire Leads	109.6 Pa	0.44 in H2O	3.64 m³/min	129.9 CFM	Plastic	CE CSA UL VDE	38.4 mm	Ball	119 mm	119 mm	Locked Rotor Sensor		40 °C	-10 °C	-10 °C	259.91 g	0.573 lb	40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 129.9 CFM (3.64m³/min) 3 Wire Leads
