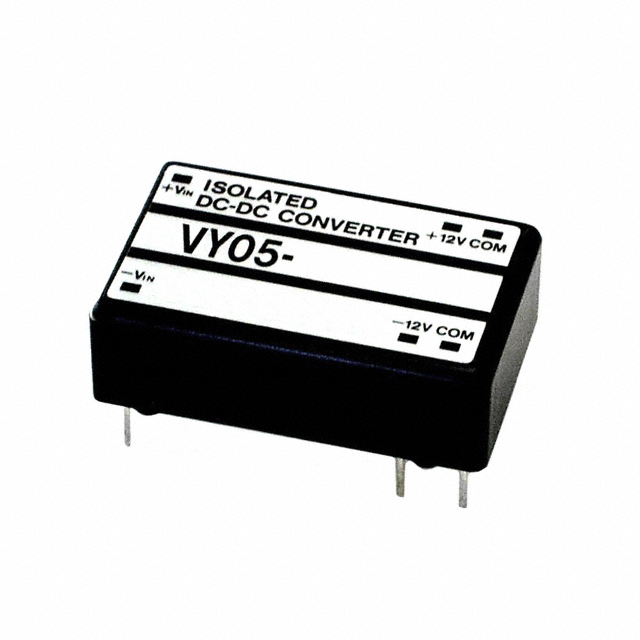

VY05-05S30L
ActiveVolgen + Furuno
DC DC CONVERTER 5V 1.5W
Deep-Dive with AI
Search across all available documentation for this part.
VY05-05S30L
ActiveVolgen + Furuno
DC DC CONVERTER 5V 1.5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VY05-05S30L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 300 mA |
| Efficiency | 55 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 24-DIP Module, 6 Leads |
| Power (Watts) | 1.5 W |
| Size / Dimension [x] | 32.6 mm |
| Size / Dimension [x] | 1.28 in |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.4 mm |
| Size / Dimension [z] | 10.3 mm |
| Size / Dimension [z] | 0.39 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 4.75 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 39.94 | |
Description
General part information
VY05-05 Series
Isolated Module DC DC Converter 1 Output 5V 300mA 4.75V - 6V Input
Documents
Technical documentation and resources
No documents available
