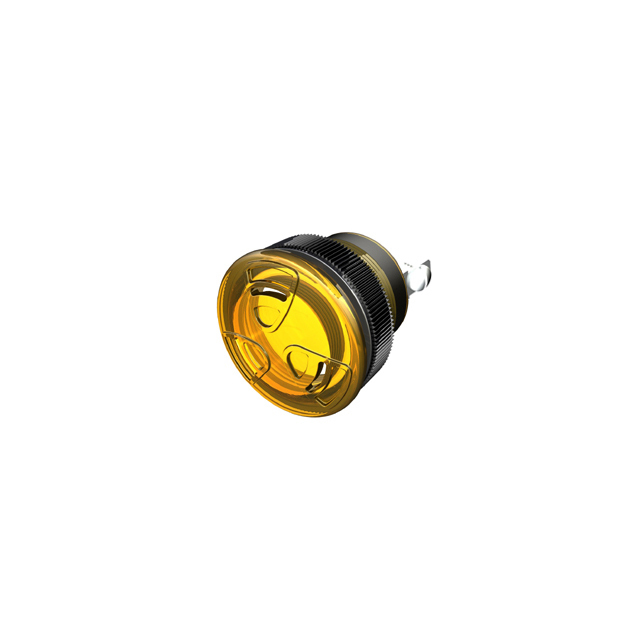

TLHB-88Y-930-SS

Active

Floyd Bell Inc

BUZZER 33.02MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER 33.02MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	TLHB-88Y-930-SS

Approval Agency	UR, UL
Current - Supply [Max]	110 mA
Current - Supply [Min]	50 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.9 kHz
Height - Seated (Max) [Max] [z]	1.18 in
Height - Seated (Max) [Max] [z]	29.97 mm
Ingress Protection	IP68 - Dust Tight, Waterproof
Input Type	DC
Operating Mode	Slow, Pulse
Port Location	Top
Size / Dimension [diameter]	1.3 in
Size / Dimension [diameter]	33.02 mm
Sound Pressure Level (SPL)	103 dB
Termination	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	30 V
Voltage Range [Min]	9 V

Part	Termination	Ingress Protection	Operating Mode	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Min]	Voltage Range [Max]	Frequency	Port Location	Sound Pressure Level (SPL)	Input Type	Current - Supply [Max]	Current - Supply [Min]	Driver Circuitry	Approval Agency
Floyd Bell Inc TLHB-88Y-930-QS	Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight Waterproof	Pulse Slow	1.18 in	29.97 mm	1.3 in	33.02 mm	9 V	30 V	2.9 kHz	Top	103 dB	DC	110 mA	50 mA	Indicator Internally Driven	UL UR
Floyd Bell Inc TLHB-88Y-930-SF	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight Waterproof	Fast Pulse	1.18 in	29.97 mm	1.3 in	33.02 mm	9 V	30 V	2.9 kHz	Top	103 dB	DC	110 mA	50 mA	Indicator Internally Driven	UL UR
Floyd Bell Inc TLHB-88Y-930-SS	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight Waterproof	Pulse Slow	1.18 in	29.97 mm	1.3 in	33.02 mm	9 V	30 V	2.9 kHz	Top	103 dB	DC	110 mA	50 mA	Indicator Internally Driven	UL UR
Floyd Bell Inc TLHB-88Y-930-QF	Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight Waterproof	Fast Pulse	1.18 in	29.97 mm	1.3 in	33.02 mm	9 V	30 V	2.9 kHz	Top	103 dB	DC	110 mA	50 mA	Indicator Internally Driven	UL UR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.41

General part information

Buzzers Indicator, Internally Driven 50 ~ 110mA 2.9kHz 103dB @ 30V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
