NE85630-T1-R24-A

Obsolete

CEL

RF TRANS NPN 12V 4.5GHZ SOT323

Search across all available documentation for this part.

Obsolete

CEL

RF TRANS NPN 12V 4.5GHZ SOT323

Technical Specifications

Parameters and characteristics for this part

Specification	NE85630-T1-R24-A

Current - Collector (Ic) (Max) [Max]	100 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	70
Frequency - Transition	4.5 GHz
Gain	9 dBi
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f)	1.2 dB
Operating Temperature	150 °C

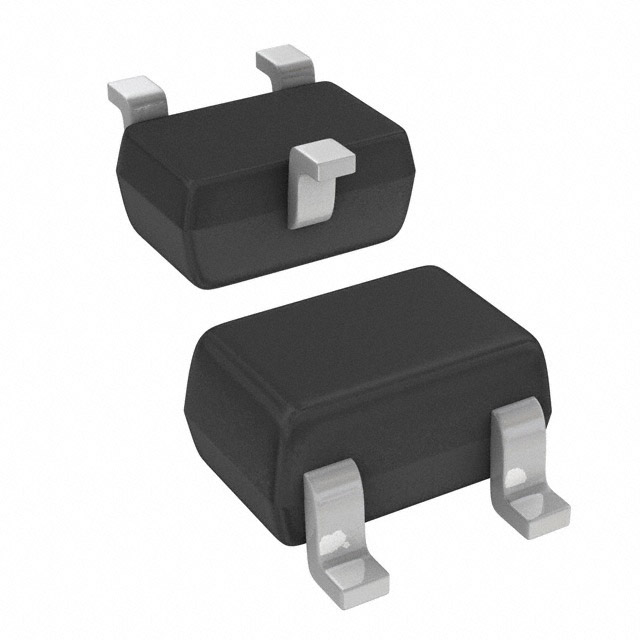

Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12 V

Part	Supplier Device Package	Mounting Type	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature	Package / Case	Transistor Type	Frequency - Transition	Noise Figure (dB Typ @ f)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Gain	Noise Figure (dB Typ @ f) [Min]	Noise Figure (dB Typ @ f) [Max]	Gain [Max]	Gain [Min]
CEL NE85630-T1-A	SOT-323	Surface Mount	100 mA	12 V	150 °C	SC-70 SOT-323	NPN	4.5 GHz	1.2 dB	40	9 dBi
CEL NE85630-R25-A	SOT-323	Surface Mount	100 mA	12 V	150 °C	SC-70 SOT-323	NPN	4.5 GHz	1.2 dB	125	9 dBi
CEL NE85630-T1	SOT-323	Surface Mount	100 mA	12 V	150 °C	SC-70 SOT-323	NPN	4.5 GHz		40		1.3 dB	2.2 dB	12 dB	6 dB
CEL NE85630-T1-R24-A	SOT-323	Surface Mount	100 mA	12 V	150 °C	SC-70 SOT-323	NPN	4.5 GHz	1.2 dB	70	9 dBi
CEL NE85630-R24-A	SOT-323	Surface Mount	100 mA	12 V	150 °C	SC-70 SOT-323	NPN	4.5 GHz	1.2 dB	70	9 dBi
CEL NE85630-A	SOT-323	Surface Mount	100 mA	12 V	150 °C	SC-70 SOT-323	NPN	4.5 GHz	1.2 dB	40	9 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Transistor NPN 12V 100mA 4.5GHz 150mW Surface Mount SOT-323
