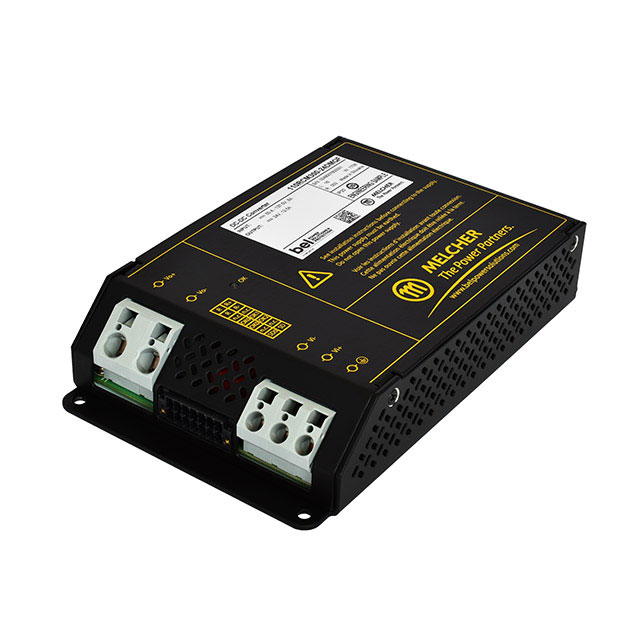

24RCM300-24
ActiveEOS Power India Private Ltd
DC/DC CONVERTER 24V 300W
Deep-Dive with AI
Search across all available documentation for this part.
24RCM300-24
ActiveEOS Power India Private Ltd
DC/DC CONVERTER 24V 300W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 24RCM300-24 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CE, NEMKO |
| Current - Output (Max) [Max] | 12.5 A |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 300 W |
| Size / Dimension [x] | 7.43 in |
| Size / Dimension [x] | 188.6 mm |
| Size / Dimension [y] | 116 mm |
| Size / Dimension [y] | 4.57 in |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 45 V |
| Voltage - Input (Min) [Min] | 16.8 V |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 448.44 | |
| 16 | $ 426.02 | |||
Description
General part information
24RCM300 Series
Enclosed DC DC Converter 1 Output 24V 12.5A 45V Input
Documents
Technical documentation and resources
No documents available
