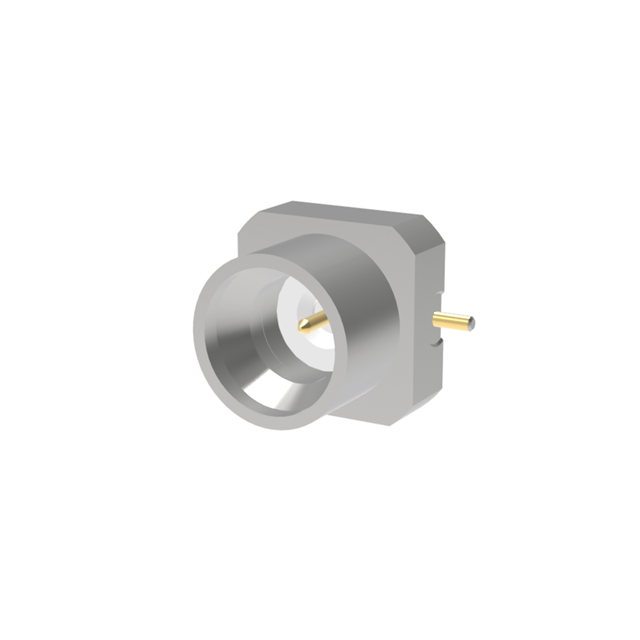

TM14-0053-00TR
ActiveCarlisleIT
SMPM STR, PLUG R/A CONTACT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TM14-0053-00TR
ActiveCarlisleIT
SMPM STR, PLUG R/A CONTACT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TM14-0053-00TR |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max [Max] | 65 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Voltage Rating | 325 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.37 | |
| 10 | $ 5.64 | |||
| 25 | $ 5.09 | |||
| 50 | $ 4.72 | |||
| 100 | $ 4.38 | |||
| 250 | $ 3.98 | |||
| 500 | $ 3.71 | |||
| 1000 | $ 3.47 | |||
| Tape & Reel (TR) | 2000 | $ 3.25 | ||
Description
General part information
TM14-0053 Series
SMPM Connector Receptacle, Male Pin 50 Ohms Surface Mount, Right Angle Solder
