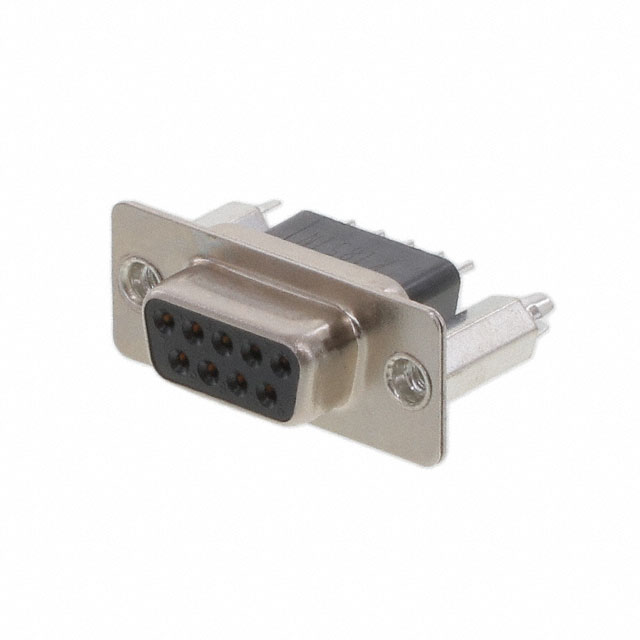

K88X-ED-9S-BR

Active

Kycon, Inc.

CONN D-SUB RCPT 9POS VERT SOLDER

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN D-SUB RCPT 9POS VERT SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	K88X-ED-9S-BR

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	30 VDC

Part	Contact Finish	Number of Rows	Material Flammability Rating	Termination	Shell Material, Finish	Mounting Type	Contact Form	Contact Material	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Connector Type	Number of Positions	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Features	Dielectric Material	Voltage Rating	Current Rating (Amps)	Connector Style	Contact Finish Thickness	Contact Finish Thickness
Kycon, Inc. K88X-ED-9P-K	Gold	2	UL94 V-0	Solder	Nickel Plated Steel	Through Hole	Stamped	Brass	Black	DE E	1	Signal	Male Pins Plug	9	4-40 Board Side	105 ░C	-55 °C	Flash	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	30 VDC	2 A	D-Sub
Kycon, Inc. K88X-ED-9P-BRJ30	Gold	2	UL94 V-0	Solder	Nickel Plated Steel	Through Hole	Stamped	Brass	Black	DE E	1	Signal	Male Pins Plug	9	Board Side (4-40) Mating Side Female Screwlock (4-40)	105 ░C	-55 °C		Board Lock Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	30 VDC	2 A	D-Sub	0.76 Ám	30 Áin
Kycon, Inc. K88X-ED-9S-BR	Gold	2	UL94 V-0	Solder	Nickel Plated Steel	Through Hole	Stamped	Phosphor Bronze	Black	DE E	1	Signal	Receptacle Female Sockets	9	4-40 Board Side	105 ░C	-55 °C	Flash		Polybutylene Terephthalate (PBT) Glass Filled	30 VDC	2 A	D-Sub
