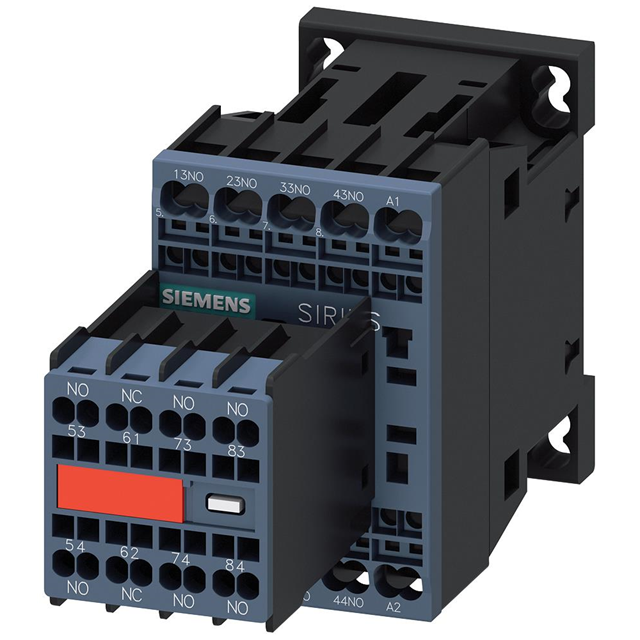

3RH22712BB40 - MFG_3RH22712BB40

3RH22712BB40

Active
Siemens

CONTACTOR RELAY 7NO+1NC DC 24V S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetSIRIUS 2 Control Relay Specification and Catalog
3RH22712BB40 - MFG_3RH22712BB40

3RH22712BB40

Active
Siemens

CONTACTOR RELAY 7NO+1NC DC 24V S

Deep-Dive with AI

DocumentsDatasheetSIRIUS 2 Control Relay Specification and Catalog

Technical Specifications

Parameters and characteristics for this part

Specification3RH22712BB40
Coil Power4 W
Coil Voltage24 VDC
Contact Form8PST-7NO/1NC (7 Form A, 1 Form B)
Contact Rating (Current)10 A
FeaturesAuxiliary Contacts
Mounting TypeChassis Mount, DIN Rail
Must Operate Voltage19.2 VDC
Operate Time100 ms
Operating Temperature [Max]60 °C
Operating Temperature [Min]-25 °C
Release Time13 ms
Switching Voltage690 VAC
Termination StyleSpring Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 164.97

Description

General part information

3RH22712 Series

CONTACTOR RELAY 7NO+1NC DC 24V S
