AMEM5-15S277HAVZ

Obsolete

aimtec

AC/DC CONVERTER 15V 5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

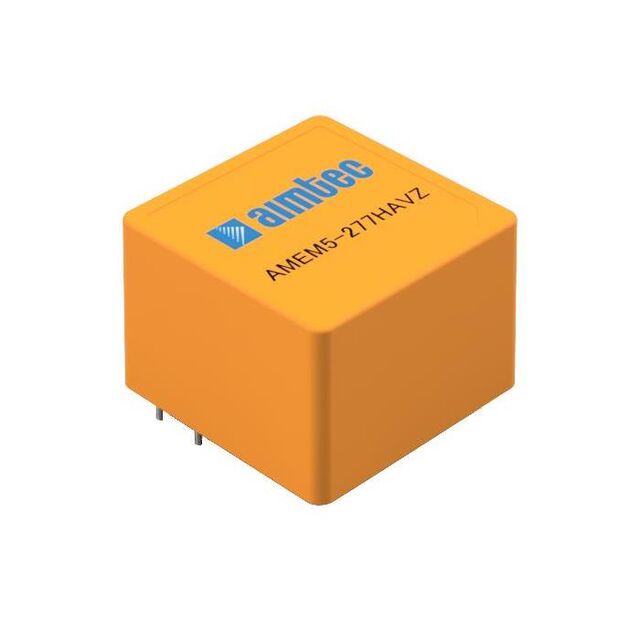

AMEM5-15S277HAVZ

Obsolete

aimtec

AC/DC CONVERTER 15V 5W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMEM5-15S277HAVZ

Applications	Household Appliances, ITE (Commercial)
Approval Agency	UL, CE
Current - Output (Max) [Max]	333 mA
Efficiency	81.5 %
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	5-DIP Module
Power (Watts)	5 W
Size / Dimension [x]	25.4 mm
Size / Dimension [x]	1 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.69 "
Size / Dimension [z]	17.6 mm
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Output 1	15 V
Weight	18.5 g
Weight	0.041 lb

AMEM5 Series

Part	Voltage - Input [Min]	Voltage - Input [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Load Regulation	Approval Agency	Power (Watts)	Number of Outputs	Package / Case	Mounting Type	Type	Voltage - Output 1	Line Regulation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Current - Output (Max)	Weight	Weight	Package / Case	Standard Number
aimtec AMEM5-5SY	85 VAC 120 VDC	264 VAC 370 VDC	Universal Input	70 °C	-25 °C	74 %	ITE (Commercial)	1 %	CE cURus	5 W	1	5-DIP Module	Through Hole	Enclosed	5 V	1 %	25.4 mm	25.4 mm	1 in	15.2 mm	0.6 "	25.4 mm	1 A
aimtec AMEM5-3S277HAVZ	85 VAC 100 V	305 VAC 430 VDC		85 °C	-40 °C	71.5 %	Household Appliances ITE (Commercial)	1 %	CE UL	5 W	1	5-DIP Module	Through Hole	Enclosed	3.3 V	0.5 %	25.4 mm	25.4 mm	1 in	17.6 mm	0.69 "	25.4 mm		1.515 A	0.04 lb	18 g	4 Lead	60335-1 62368-1
aimtec AMEM5-12S277HAVZ	85 VAC 100 V	305 VAC 430 VDC		85 °C	-40 °C	80.5 %	Household Appliances ITE (Commercial)	1 %	CE UL	5 W	1	5-DIP Module	Through Hole	Enclosed	12 V	0.5 %	25.4 mm	25.4 mm	1 in	17.6 mm	0.69 "	25.4 mm	416 mA		0.04 lb	18 g	4 Lead	60335-1 62368-1
aimtec AMEM5-12SY	85 VAC 120 VDC	264 VAC 370 VDC	Universal Input	70 °C	-25 °C	77.6 %	ITE (Commercial)	1 %	CE cURus	4.9 W	1	5-DIP Module	Through Hole	Enclosed	12 V	1 %	25.4 mm	25.4 mm	1 in	15.2 mm	0.6 "	25.4 mm	410 mA		0.041 lb	18.5 g
aimtec AMEM5-24SY			Universal Input	70 °C	-25 °C	78 %	ITE (Commercial)	1 %	CE cULus cURus EN IEC UL	5 W	1	5-DIP Module	Through Hole	Enclosed	24 V	1 %	25.4 mm	25.4 mm	1 in	15.2 mm	0.6 "	25.4 mm	200 mA		0.041 lb	18.5 g		62368-1
aimtec AMEM5-15S277HAVZ	85 VAC 100 V	305 VAC 430 VDC		85 °C	-40 °C	81.5 %	Household Appliances ITE (Commercial)	1 %	CE UL	5 W	1	5-DIP Module	Through Hole	Enclosed	15 V	0.5 %	25.4 mm	25.4 mm	1 in	17.6 mm	0.69 "	25.4 mm	333 mA		0.041 lb	18.5 g	4 Lead	60335-1 62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AMEM5 Series

Enclosed AC DC Converters 1 Output 15V 333mA 85 ~ 305 VAC, 100 ~ 430 VDC Input
