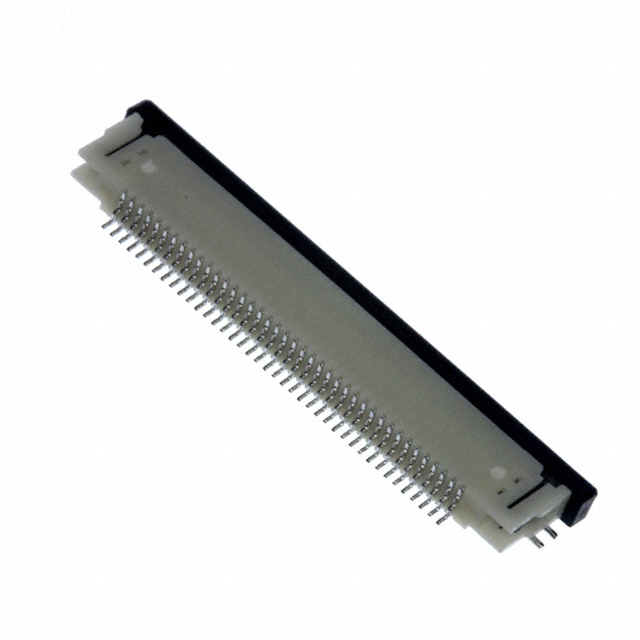

40FLZ-RSM2-R-TB(LF)(SN)
ActiveJST Sales America Inc.
CONN FFC BOTTOM 40POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
40FLZ-RSM2-R-TB(LF)(SN)
ActiveJST Sales America Inc.
CONN FFC BOTTOM 40POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 40FLZ-RSM2-R-TB(LF)(SN) |
|---|---|
| Actuator Color | Black |
| Actuator Material | Polyamide (PA6T), Nylon 6T |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.079 in |
| Height Above Board | 2 mm |
| Housing Color | Natural |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
40FLZ-RS Series
| Part | Contact Finish | Mounting Type | Locking Feature | Actuator Material | Termination | Number of Positions | Connector/Contact Type | FFC, FCB Thickness | Features | Cable End Type | Material Flammability Rating | Actuator Color | Housing Material | Contact Material | Flat Flex Type | Current Rating (Amps) | Height Above Board | Height Above Board | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Pitch [x] | Pitch [x] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Tin-Lead | Surface Mount Right Angle | Slide Lock | Nylon 4/6 Polyamide (PA46) | Solder | 40 | Contacts Bottom | 0.3 mm | Solder Retention Zero Insertion Force (ZIF) | Tapered | UL94 V-0 | Black | Polyamide (PA46) Nylon 4/6 | Phosphor Bronze | FFC FPC | 0.5 A | 0.079 in | 2 mm | -25 °C | 85 °C | 50 V | 0.5 mm | 0.02 in | Natural |
JST Sales America Inc. | Tin | Surface Mount Right Angle | Slide Lock | Polyamide (PA6T) Nylon 6T | Solder | 40 | Contacts Bottom | 0.3 mm | Solder Retention Zero Insertion Force (ZIF) | Tapered | UL94 V-0 | Black | Polyamide (PA6T) Nylon 6T | Phosphor Bronze | FFC FPC | 0.5 A | 0.079 in | 2 mm | -25 °C | 85 °C | 50 V | 0.5 mm | 0.02 in | Natural |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.06 | |
| 10 | $ 1.79 | |||
| 25 | $ 1.71 | |||
| 50 | $ 1.68 | |||
| 100 | $ 1.60 | |||
| 250 | $ 1.45 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.14 | |||
| Digi-Reel® | 1 | $ 2.06 | ||
| 10 | $ 1.79 | |||
| 25 | $ 1.71 | |||
| 50 | $ 1.68 | |||
| 100 | $ 1.60 | |||
| 250 | $ 1.45 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.14 | |||
| Tape & Reel (TR) | 2800 | $ 1.07 | ||
| 5600 | $ 1.01 | |||
| 8400 | $ 0.99 | |||
Description
General part information
40FLZ-RS Series
40 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
