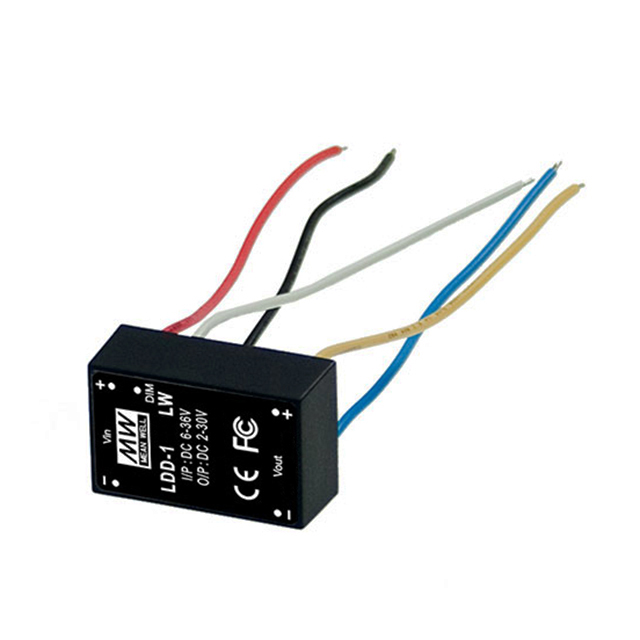

LDD-1000LW

Obsolete

MEAN WELL USA Inc.

LED DRIVER CC BUCK 2-30V 1A

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRIVER CC BUCK 2-30V 1A

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Efficiency	Topology	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Termination Style	Dimming	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Features	Voltage - Output [Max]	Voltage - Output [Min]	Package / Case
MEAN WELL USA Inc. LDD-1000HW	1	Constant Current	85 °C	-40 °C	IP67	97 %	Buck	CE	1 A	9 V	Wire Leads	PWM	Chassis Mount	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	56 V	OTP Remote On/Off SCP	52 V	2 V
MEAN WELL USA Inc. LDD-1000LW	1	Constant Current	85 °C	-40 °C	IP67	95 %	Buck	CE	1 A	6 V	Wire Leads	PWM	Chassis Mount	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	36 V	OTP Remote On/Off SCP	30 VDC	2 V
MEAN WELL USA Inc. LDD-1000LS	1	Constant Current	71 °C	-40 °C		95 %	Buck	CE	1 A	6 V		Analog PWM	Surface Mount	20.3 mm	1.25 "	31.8 mm	0.8 in	0.45 "	11.4 mm	36 V	Remote On/Off SCP	30 VDC	2 V	24-SMD Module 18 Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1A 2 ~ 30V Constant Current LED Driver Buck Topology 1 Output
