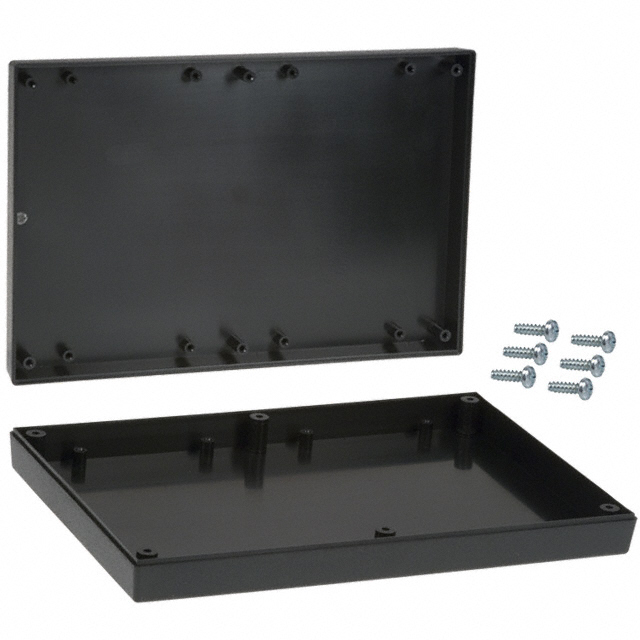

191,BK

Active

Serpac

BOX ABS BLACK 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	191,BK

Area (L x W)	60.2 in²
Area (L x W)	388 cm²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in

Part	Height [z]	Height [z]	Material	Ratings	Container Type	Area (L x W)	Area (L x W)	Features	Design	Thickness	Thickness	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Color
Serpac 191,AL	38.1 mm	1.5 in	Plastic ABS	IP40 NEMA 1	Box	60.2 in²	388 cm²	PCB Supports	Hand Held Split Sides	2.54 mm	0.1 in	UL94 HB	9.5 "	6.34 "	161.04 mm 241.3 mm	Almond
Serpac 191,BK	38.1 mm	1.5 in	Plastic ABS	IP40 NEMA 1	Box	60.2 in²	388 cm²	PCB Supports	Hand Held Split Sides	2.54 mm	0.1 in	UL94 HB	9.5 "	6.34 "	161.04 mm 241.3 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 9.500" L x 6.340" W (241.30mm x 161.04mm) X 1.500" (38.10mm)

Technical documentation and resources

No documents available
