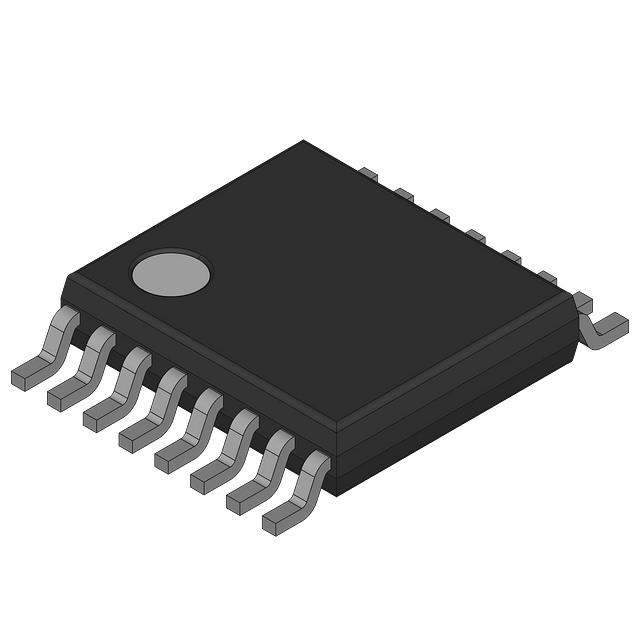

MC74HC138ADTEL

Active

Motorola

DECODER/DEMUX SINGLE 3-TO-8

Search across all available documentation for this part.

Active

Motorola

DECODER/DEMUX SINGLE 3-TO-8

Technical Specifications

Parameters and characteristics for this part

Specification	MC74HC138ADTEL

Circuit	1 x 3:8
Current - Output High, Low [custom]	5.2 mA
Current - Output High, Low [custom]	5.2 mA
Independent Circuits	1
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	16-TSSOP
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Supplier Device Package	16-TSSOP
Type	Decoder/Demultiplexer
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	2 V
Voltage Supply Source	Single Supply

Part	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Independent Circuits	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Supply Source	Circuit	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case [x]	Package / Case	Package / Case [y]	Type
Motorola MC74HC138ADTEL	5.2 mA	5.2 mA	16-TSSOP	1	Surface Mount	-55 °C	125 °C	Single Supply	1 x 3:8	2 V	6 V	0.173 in	16-TSSOP	4.4 mm	Decoder/Demultiplexer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2219	$ 0.14

General part information

Decoder/Demultiplexer 1 x 3:8 16-TSSOP

Technical documentation and resources

No documents available
