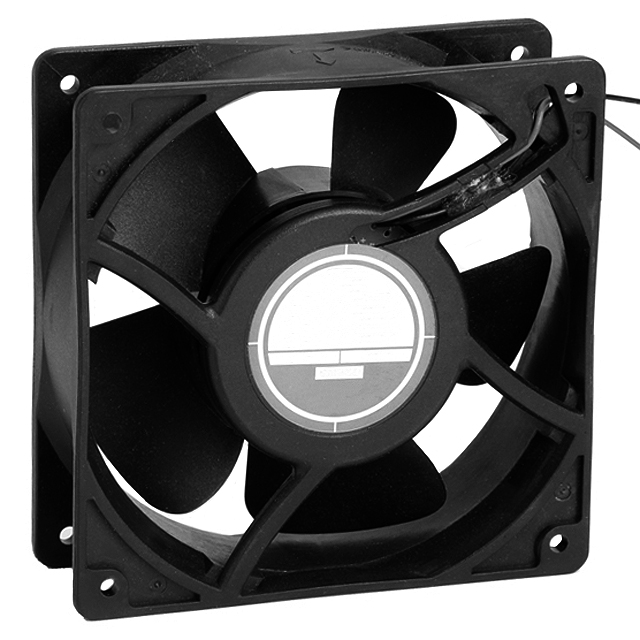

OD1238-48MS02A

Active

Orion Fans

FAN AXIAL 120X38.5MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD1238-48MS02A

Active

Orion Fans

FAN AXIAL 120X38.5MM 48VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD1238-48MS02A

Air Flow	2.21 m³/min
Air Flow	79 CFM
Approval Agency	cURus, TUV
Bearing Type	Sleeve
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Lifetime @ Temp.	65000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	33 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.8 W
RPM	2550 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.21 in H2O
Static Pressure	52.3 Pa
Termination	3 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	28 V
Width [y]	38.5 mm

OD1238 Series

...

Part	Noise	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Voltage - Rated	Features	Power (Watts)	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Material - Frame	Bearing Type	Lifetime @ Temp.	Current Rating (Amps)	Termination	Approval Agency	Fan Type	Width [y]	Ingress Protection	Voltage - Rated [custom]	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [z]
Orion Fans OD1238-12HBXC5	61 dB(A)	5.6 mł/min	200 CFM	70 °C	70 °C	-10 °C	-10 °C	4300 RPM	12 VDC	Auto Restart PWM Control	23 W	159.4 Pa	0.64 in H2O	120 mm	120 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	65000 Hrs	1.95 A	3 Wire Leads	cURus TUV	Tubeaxial	38.5 mm
Orion Fans OD1238-24LBIP55	33 dB(A)	2.04 m³/min	73 CFM	70 °C	70 °C	-10 °C	-10 °C	1950 RPM	24 VDC		4 W	32.4 Pa	0.13 in H2O	120 mm	120 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	65000 Hrs	140 mA	2 Wire Leads	cURus TUV	Tubeaxial	38.5 mm	IP55 - Dust Protected Water Resistant
Orion Fans OD1238-48HBXC02A	61 dB(A)	5.6 mł/min	200 CFM	70 °C	70 °C	-10 °C	-10 °C	4300 RPM		Auto Restart Locked Rotor Sensor	25 W	159.4 Pa	0.64 in H2O	120 mm	120 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	65000 Hrs	0.52 A	3 Wire Leads	cURus TUV	Tubeaxial	38.5 mm		48 VDC
Orion Fans OD1238-48MS02A	33 dB(A)	2.21 m³/min	79 CFM	70 °C	70 °C	-10 °C	-10 °C	2550 RPM		Locked Rotor Sensor	3.8 W	52.3 Pa	0.21 in H2O	120 mm	120 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sleeve	65000 Hrs		3 Wire Leads	cURus TUV	Tubeaxial	38.5 mm		48 VDC	28 V	56 VDC
Orion Fans OD1238-48MSS	33 dB(A)	2.21 m³/min	79 CFM	70 °C	70 °C	-10 °C	-10 °C	2550 RPM			3.8 W	52.3 Pa	0.21 in H2O	120 mm	120 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sealed Sleeve	65000 Hrs		2 Wire Leads	cURus TUV	Tubeaxial	38.5 mm		48 VDC	28 V	56 VDC
Orion Fans OD1238-12MBXC5	57 dB	4.9 mł/min	175 CFM	70 °C	70 °C	-10 °C	-10 °C	3800 RPM	12 VDC	Auto Restart PWM Control	18 W	127 Pa	0.51 in H2O	120 mm	120 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	65000 Hrs	1.5 A	3 Wire Leads	cURus TUV	Tubeaxial	38.5 mm
Orion Fans OD1238-48LBXC10A	52 dB	4.2 mł/min	150 CFM	70 °C	70 °C	-10 °C	-10 °C	3200 RPM		Auto Restart PWM Control Speed Sensor (Tach)	11 W	94.6 Pa	0.38 in H2O	120 mm	120 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	65000 Hrs	0.22 A	4 Wire Leads	cURus TUV	Tubeaxial	38.5 mm		48 VDC
Orion Fans OD1238-12MBIP55	41 dB	2.66 m³/min	95 CFM	70 °C	70 °C	-10 °C	-10 °C	2540 RPM	12 VDC		4 W	57.3 Pa	0.23 in H2O	120 mm	120 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	65000 Hrs	0.35 A	2 Wire Leads	cURus TUV	Tubeaxial	38.5 mm	IP55 - Dust Protected Water Resistant
Orion Fans OD1238AP-24LTB	25 dB(A)	1.96 m³/min	70 CFM	65 °C	65 °C	-15 °C	-15 °C	1950 RPM	24 VDC	Auto Restart	3.6 W	62.3 Pa	0.25 in H2O		119.5 mm	Polybutylene Terephthalate (PBT)	Aluminum	Ball	65000 Hrs	150 mA	2 Terminals	cURus TUV	Tubeaxial	38.5 mm					119.5 mm
Orion Fans OD1238-24HBXC5	61 dB(A)	5.6 mł/min	200 CFM	70 °C	70 °C	-10 °C	-10 °C	4300 RPM	24 VDC	Auto Restart PWM Control	19 W	159.4 Pa	0.64 in H2O	120 mm	120 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	65000 Hrs	0.98 A	3 Wire Leads	cURus TUV	Tubeaxial	38.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 17.06

Description

General part information

OD1238 Series

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Sleeve 79.0 CFM (2.21m³/min) 3 Wire Leads

Documents

Technical documentation and resources

No documents available
