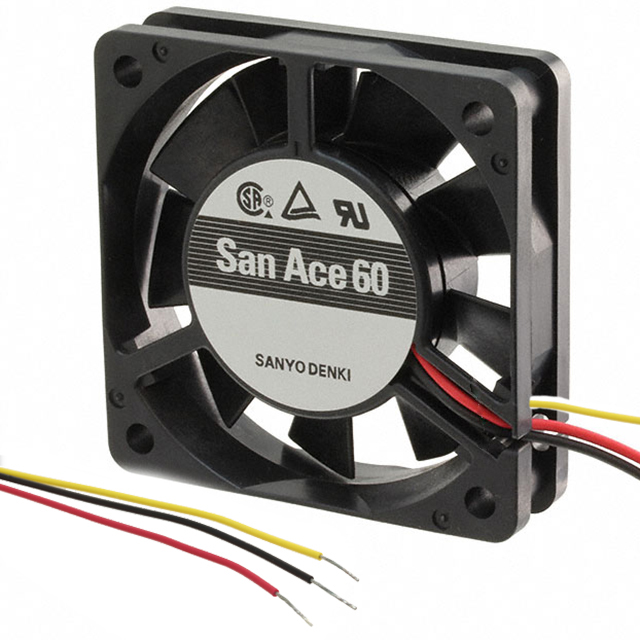

109P0605H701

Active

Sanyo Denki America Inc.

FAN AXIAL 60X15MM BALL 5VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 60X15MM BALL 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	109P0605H701

Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.26 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Material - Blade	Plastic
Material - Frame	Plastic
Noise	32 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.3 W
RPM	4100 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	38.2 Pa
Static Pressure	0.153 in H2O
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Weight	60.33 g
Weight	0.133 lb
Width [x]	15 mm

Part	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	Material - Frame	Termination	Voltage - Rated	Current Rating (Amps)	Air Flow	Air Flow	Width [x]	Size / Dimension [x]	Size / Dimension [y]	RPM	Approval Agency	Power (Watts)	Weight	Weight	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Fan Type	Material - Blade	Features
Sanyo Denki America Inc. 109P0605M702	4.5 V	5.5 V	0.091 in H2O	22.7 Pa	Plastic	2 Wire Leads	5 V	150 mA	0.297 m³/min	10.6 CFM	15 mm	60 mm	60 mm	3100 RPM	CSA TUV UL	0.75 W	60.33 g	0.133 lb	Ball	-20 °C	70 °C	-20 C	70 °C	25 dB(A)	Tubeaxial	Plastic
Sanyo Denki America Inc. 109P0605H702	4.5 V	5.5 V	0.153 in H2O	38.2 Pa	Plastic	2 Wire Leads	5 V	0.26 A			15 mm	60 mm	60 mm	4100 RPM	CSA TUV UL	1.3 W	60.33 g	0.133 lb	Ball	-20 °C	70 °C	-20 C	70 °C	32 dB	Tubeaxial	Plastic
Sanyo Denki America Inc. 109P0605H7D01	4.5 V	5.5 V	0.153 in H2O	38.2 Pa	Plastic	3 Wire Leads	5 V	0.26 A	0.395 mł/min	14.1 CFM	15 mm	60 mm	60 mm	4100 RPM	CSA TUV UL	1.3 W	60.33 g	0.133 lb	Ball	-20 °C	70 °C	-20 C	70 °C	32 dB	Tubeaxial	Plastic	Locked Rotor Sensor
Sanyo Denki America Inc. 109P0605H701	4.5 V	5.5 V	0.153 in H2O	38.2 Pa	Plastic	3 Wire Leads	5 V	0.26 A			15 mm	60 mm	60 mm	4100 RPM	CSA TUV UL	1.3 W	60.33 g	0.133 lb	Ball	-20 °C	70 °C	-20 C	70 °C	32 dB	Tubeaxial	Plastic	Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 60mm L x 60mm H Ball 14.1 CFM (0.395m³/min) 3 Wire Leads
